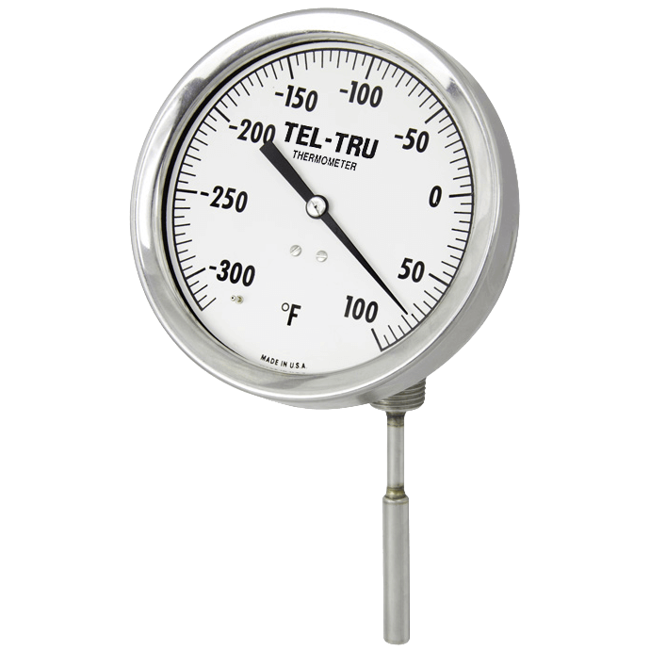

Direct Mount Gas Actuated Thermometer

Brand: Tel-Tru Manufacturing Co.

Tel-Tru’s Gas Actuated Thermometers are of a molecular sieve design utilizing inert gas and activated carbon to produce much lower internal pressures than conventional gas thermometers.

As a result, they offer dependability, durability, high accuracy--low ambient error, and extreme over-range capabilities.

Specifications

Applications

  • Food Processing
  • High Temperature Applications
  • OEM Applications
  • Refrigeration Equipment
  • Storage Tanks

Bulb Material

  • Stainless Steel

Connection Material

  • Stainless Steel

Enclosure, Body Material

  • Stainless Steel

Length

  • Bulb Length: 2.5” to 3” (63.5 to 76.2 mm)

Lens

  • Acrylic Lens
  • Glass Lens
  • Shatterproof Glass

Materials of Construction

  • Dial (White with Black Markings), Pointer (Black): Aluminum

Mounting

  • Direct Mounting

NPT Connection

  • 1/2” NPT Male Compression Fitting

Size

  • Case Size: 4-1/2” (114.3 mm)
  • Case Size: 6” (152 mm)

Stem Length

  • 4” to 15” (101.60 to 381 mm)

Temperature Range

  • -200° to 650° C (-320° to 1,200° F)
