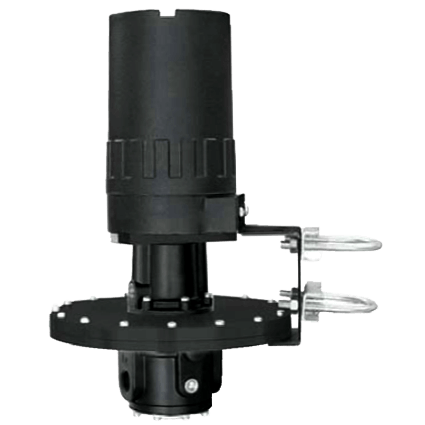

Model 2400XFS Low Pressure M/P Converter
Brand: Fairchild Industrial ProductsExplosion-proof DC Pulse Input (XS): The Rotork Fairchild Model 2400 M/P Converter is isolated from an explosive environment by enclosing in an Explosion-proof housing.
The Stepper Motor configuration is equipped with a clock generator positioned horizontally, which plugs into a vertically mounted translator board. The configuration includes limit switches.
The Stepper Motor is mounted on the bottom of the motor assembly in the base of the Explosion-proof housing.
Wiring to the unit is made to a terminal board through a 1/2" - 14 NPT conduit fitting in the base of the housing. The unit includes two single pole, double throw, double break limit switches.
Switches on the clock generator board allow selection of: a) Internally or Externally Powered Controls Loops b) Half-step or Full Step Mode c) High-Speed or Low-Speed Operation
Specifications
Approvals & Certifications
- FM Explosion-proof for Class I, Div. 1, Groups B, C, D & Class II, Div. 1, Groups E, F, G,
Electrical Contacts
- Normally Closed
- Normally Open
Enclosure, Body Material
- Aluminum
Environmental Protection
- Explosion-proof
- NEMA 4X
Input
- 24 Vdc
Power Options
- DC Motor / Pulse
Power Requirement
- 12-24 Vdc
Pressure Range
- bar: 0 to 0.048
- Inches WC: 0 to 200
- kPa: 0 to 4.8
- psig: 0 to 0.7
Supply Pressure - Maximum
- bar: 1.4 to 10
- kPa: 138 to 1,000
- psi: 20 to 150
Trim Material
- Stainless Steel
