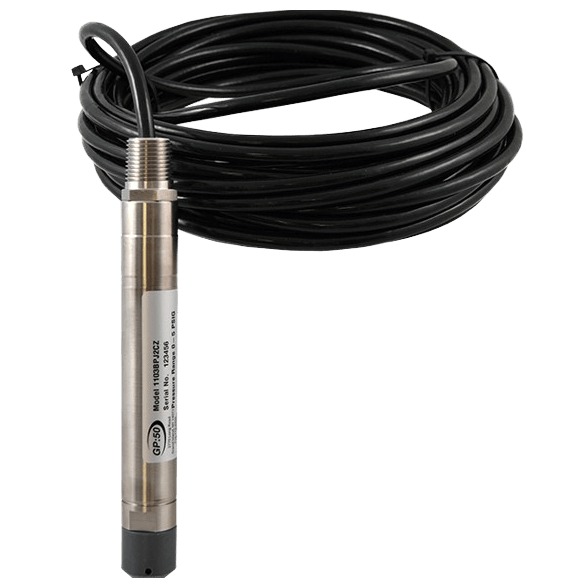

Model 1102 Submersible Level Pressure Transmitter
Brand: GP:50 New York LtdThe Model 1102/1103 from GP:50 is a family of submersible level transmitters, designed to provide high-accuracy measurements at a competitive price point.
They are offered with an all 316L stainless steel construction for extended corrosion-free service life. An optional sludge screen is available for viscous media or wastewater applications.
Features- Low-cost, high-reliability
- Submersible to 700 feet WC (213.4 meters WC)
- 1” (2.5 cm) diameter • Up to ±0.2 % Full Scale Output accuracy
- All 316L stainless steel construction (optional titanium)
Specifications
Brand
Accuracy
- ± 0.2 % of Full Scale Output
- ± 0.5 % of Full Scale Output
Compensated Temperature
- -7° to 60° C (0° to 140° F)
Electrical Connectors
- 1/2” NPT Male Conduit with 8.5 feet of 18 AWG, 4-Conductor, Shielded, Hytrel Jacketed Cable with Integral Vent Tube & Hydrophobic Filter
Enclosure, Body Material
- 316 Stainless Steel
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Output
- 0-5 Vdc
Pressure Range
- bar: 0.3 to 21
- Inches WC: 0 to 700 feet
- kPa: 0 to 2,068
- psi: 0 to 300
Proof Pressure
- 1.5 times Full Scale Output
Response Time
- < 5 milliseconds
SAE Connection
- 7/16”-20 SAE Male
Span & Zero Effect
- < ± 2.0 % of Full Scale Output at 38° C (100° F)
Storage Temperature
- -40° to 91° C (-40° to 195° F)
Supply Voltage
- 9 to 36 Vdc
Zero Balance
- ± 2 % of Full Scale Output
