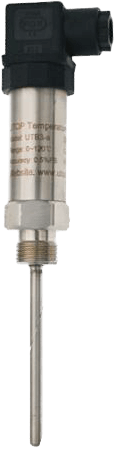

UTB3 Pt100 temperature transmitter uses Pt100 thermal resistor as sensing element.

The thermal resistor transforms the measured temperature into electrical signal, after this signal is processed, it will be amplified to 4~20 mA or other standard simulated signals on industry scene.

UTB3 is made with integrated construction for the direct measurement of various of liquid, gas and solid’s surface temperature in the range of -200~500℃.

This Pt100 temperature transmitter is featured with good performance and stability.

It is sealed with epoxy resin, this construction makes UTB3 have good ability on anti-shock and withstand high temperature, also have high mechanical strength, is suitable for the application in bad working condition.
Features
  • Use Pt100 or other thermal resistors as sensing element
  • High accuracy; low power consumption wide; operating ambient temperature range
  • Integrated construction, easy installation
  • Use full metal sealed construction, coordinate high temperature radiation trough

Specifications

Temperature Measurement Element

  • Pt100 or Other Thermal Resistors

Measured Medium

  • Gas or Liquid Compatible with Stainless Steel

Measured Medium's Temperature Ranges

  • -200° C ~+500° C

Insert Depth

  • 20 mm ~ 500 mm (As Customer's Request)

Output Signal

  • 4 ~ 20 mA (0 ~ 5 V, 1 ~ 5 V option)

Accuracy

  • 0.5 % Full Scale (Standard)

Circuit Working Temperature Range

  • -30° to +80° C

Storage Temperature Range

  • -40° to +100° C

Temperature Limit

  • 120 % of Measured Range

Power Supply

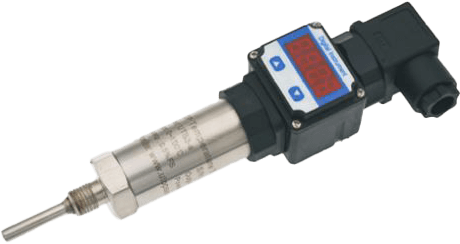

  • 10 ~ 30 Vdc (15 ~ 30 Vdc for products with indicator)

Long-Term Stability

  • 0.15 % Full Scale/year

Load Resistance

  • > 500 Ω (24 V Supply)

Circuit Temperature Shift

  • < ± 0.2 % Full Scale/10° C

Response Time

  • < 1 millisecond

Process Connection

  • G1/4” or others

Electrical Connection

  • Hirschmann Connector

Material of Housing

  • Stainless Steel

  • UTB3 Pt100 Temperature Transmitter has widely been used for Temperature Measurement in such Industries as:
    • Petroleum Industry
    • Chemical Industry
    • Spinning and Weaving
    • Mine
    • Medicine
    • Electric Power
    • Environmental Protection
    • Municipal Administration
    • Food Industry as well as Scientific Research and so on
