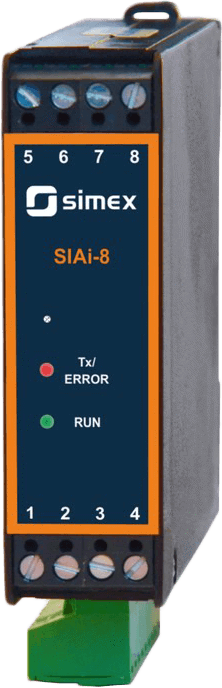

SIAi-8 Serial Transmitter
Brand: SIMEX sp. z o.o.Module SIAi-8 allows to measure analog values from 8 current: or voltage, inputs via the RS-485 connection, with speed rate about 10 Hz - every channel.
Measurement results can be internally recalculated due to one of available characteristics: linear, square or user definable multipoint - max. 20 points length.
It finds application in distributed control and visualization systems.
Standard functions of Modbus transmission allow to changing of device address or detect its type.
All SIAi-8 operating functions, available via the RS-485, can be implemented from any typical visualization software or, for instance, with a suitably MultiCon controller.
Features- Analogue Inputs Module
- 8 Independent Analogue Inputs: Voltage or Current
- RS-485 / Modbus RTU
- LEDs for Module Operation and Modbus Transmission Signalling
Specifications
Brand
Number of Inputs
- 8
Input Type
- Current: mA
- Voltage: V
Input Range
- 0/4...20 mA
- 0/1...5 V, 0/2...10 V
Power Supply
- 10…30 Vdc
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200...115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0...+50° C
- -20…+50° C
Protection Class
- IP 20
Case Material
- ABS
Mounting
- DIN Rail
Case Dimensions
- 101 x 22.5 x 80 mm
