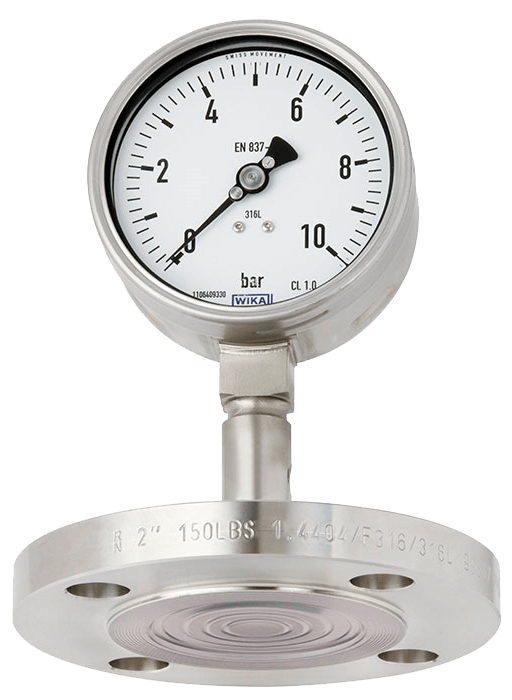

Model DSS27M Pressure Gauge per EN 837-1 with Mounted Diaphragm Seal
Brand: WIKA Alexander Wiegand SE & Co. KGDiaphragm seal systems are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media.
The diaphragm made of stainless steel provides for the separation from the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the diaphragm seal system.
Features- Flange with a flush welded diaphragm
- Robust, all welded design
- Universal application
Specifications
Design
- Pressure Gauge with Bourdon Tube per EN 837-1, Diaphragm Seal with flange Connection, flush Diaphragm
Nominal Size (NG)
- 100
Accuracy Class
- 1.0
Pressure Limitation
- Short Time: 1.3 x Full Scale Value
- Fluctuating: 0.9 x Full Scale Value
- Steady: Full Scale Value
Permissible Temperature Range
- Storage: 10° to 60° C [50° to 140° F]
- Medium: -10° to 150° C [14° to 302° F]
- Ambient: 10° to 40° C [50° to 104° F]
Ingress Protection
- IP65 per IEC/EN 60529
Wetted Material
- Diaphragm Seal: Stainless Steel 1.4404 (316L)
- Diaphragm: Stainless Steel 1.4435 [316L]
Non-Wetted Material
- Window: Laminated Safety Glass
- Case: Stainless Steel 1.4301 [304]
- Dial, Pointer: Aluminium
Level of Cleanliness of Wetted Parts
- Oil and grease free per ASTM G93-03 level F and ISO 15001 (< 1,000 mg/m²)
System Fill Fluid
- Silicone oil KN 2 for general applications
- For aggressive, highly viscous, crystallising or hot media
- Process industry
- Machine building and plant construction
