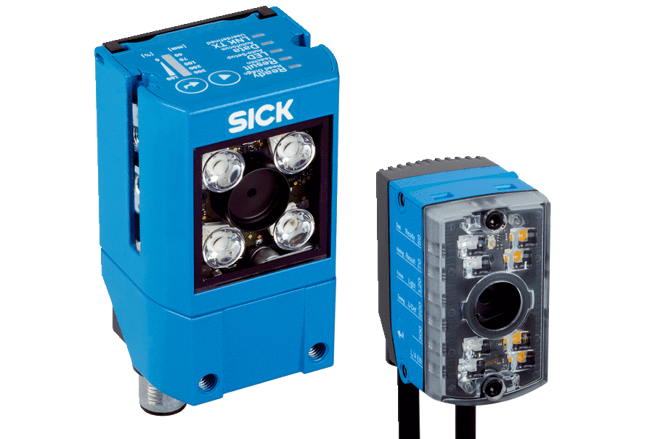

GLS6 Line Guidance and Grid Localization
Brand: Sick AGThe GLS6 product family encompasses compact sensors for localization of automated guided vehicles (AGVs). The sensors reliably detect Data Matrix or QR code labels which are attached to the floor as rasters for orientation for the AGV and deliver position data to the vehicle control. High travel speeds are no problem for the GLS6.
The GLS6 can localize perfectly on contaminated ground and fit even in the smallest AGV due to its compact size. Thanks to the optional variable focus or auto focus, the localization solution is well-suited for all ground clearances.
Thanks to the integrated alignment aid, mounting is also child’s play. And parameter back-up ensures process stability during device replacement.
At a glance
- Variable reading distances of 50 mm to 500 mm
- Reads Data Matrix and QR code labels
- Small housing with rotatable plug unit and or plug unit with flexible cable routing
- Integrated angle measurement as alignment aid for mounting
- Simple, reliable parameter back-up
- No sensitivity to ambient light
- Thanks to the optional variable focus or auto focus, it is well-suited for all ground clearances (vehicle sizes)
- Real-time image processing enables high travel speeds, thus increasing operating efficiency
- Fits into even the smallest AGV thanks to its compact size
- Plug and play solution with integrated angle measurement ensures quick and easy commissioning
- Code labels can be individualized for self-printing, ensuring a high level of flexibility and easy solutions
- Short downtime when devices are replaced thanks to parameter back-up
Specifications
Brand
Certifications & Approvals
- CE
Enclosure Rating
- IP65
- IP54
Communication Interface
- CAN
- CANopen
- Ethernet
- PROFINET
- EtherNet/IP
- USB
Reading Distance
- 50 to 500 m
Overrun Speed
- ≤ 5 m/s
- Grid localization of automated guided vehicles
