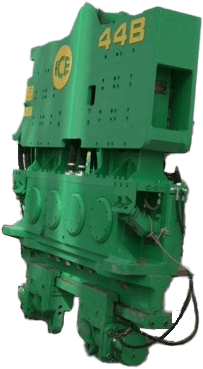

ICE 44B
Brand: PACO Ventures, LLCICE 44B has the highest frequency and driving force in its class.
With 595 HP (444 kW) and a CAT C15 Tier 3 engine, the ICE 44B meets all EPA & EU emission regulations.
Features- Computer controls on power unit reduce fuel consumption, pinpoint repair needs, & provide diagnostics and logs
- Optional 5,500 lbs (2494 kg) of bias weight increases pile penetration rates in difficult soils
- Maximum efficiency and reliability ensured by our open-loop hydraulic system. Highest quality, reliable piston pumps and motors.
- Remote-control pendant for vibrator and clamp with emergency stop. Engine speed control for fuel efficiency
- Full range of clamps available for sheet piling, H-Beams, pipe & caissons and timber & concrete piles
- Adaptable for underwater, low headroom or box leads operation
- Heavy steel enclosure and fuel-tank subbase protect power unit
- Environmentally friendly, Chevron Clarity non-toxic, biodegradable hydraulic oil
- Designed and manufactured in USA by ICE world leader in cost-effective foundation equipment since 1974
Specifications
Brand
Eccentric Moment
- 4,400 in-lb (51 kgm)
Maximum Frequency
- 1,800 VPM
Suspended Weight
- 15,365 lb (6,970 kg)
Driving Force
- 207 tons (1,8444 kN)
Amplitude
- 1 inch (28 mm)
Maximum Line Pull for Extracting
- 80 tons (725 kN)
Length
- 97 in (2,464 mm)
Width
- 21 in (534 mm)
Height with Sheet Clamping
- 122 in (3,096 mm)
