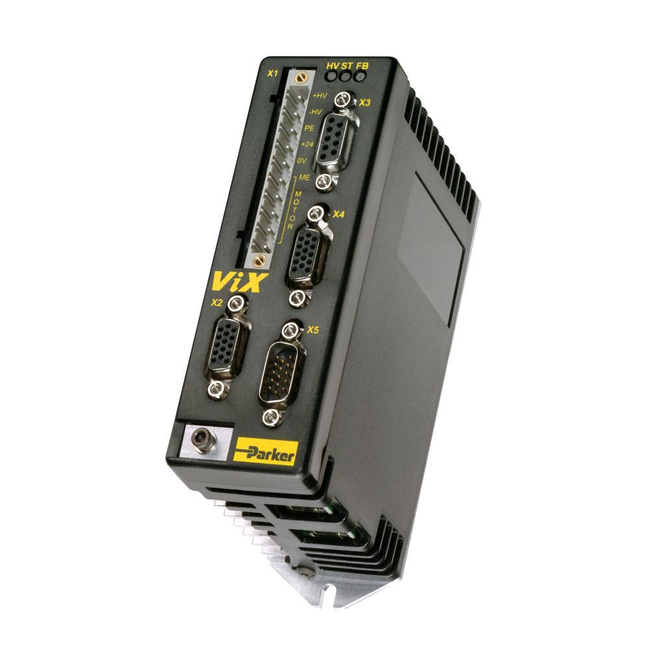

ViX250 Microstepper Drive/Indexer : 4.0Apk / 24-80Vdc

ViX250 Microstepper Drive/Indexer : 4.0Apk / 24-80 Vdc

Brand: Parker Hannifin
Add Product to My Catalog

ViX250 microstepper drives offer a 4A/80Vdc output and 51,200 step/rev resolution for smooth operation.

They feature a motion controller with 2 encoder ports, optional CANopen, plus they accept industry standard step/direction/Analog command signals.

Specifications

Brand

Approvals & Certifications

  • CE (EMC & LVD) UL Recognised, cUL Recognised, RoHS Compliance

Communication Interface

  • RS-232, RS-485, CANopen

Continuous Output Current Rating

  • 2.8 A RMS / 4.0 A Pk

Drive Format

  • Single Axis Technology

Features

  • Stall Detect (with Encoder) Position Maintenance High-Speed Registration Load Mounted Encoder Scaling (In User Units) User Variables Automatic Standby Current Reduction

Input Supply Voltage

  • 24 - 80 Vdc

Maximum Resolution (Steps/Rev)

  • 51200

Modes of Control

  • Programmable Control - Proprietary Language Electronic Gearing / Following Feed Rate Override Step / Direction Command Input Analog Command Input

Operating Temperature (°C)

  • 0° to 50° C

Operating Temperature (°F)

  • 32° to 122° F

Product Type

  • Stepper Drive

Recommended Motor Inductance

  • 0.5 - 20 MH

Series

  • ViX
