1510 Side Mounted Level Switch

Brand: Cameron

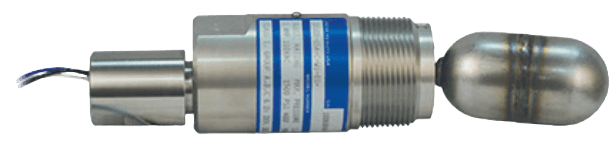

1510 is a horizontally mounted, float-operated level switch suitable for plant and OEM applications where open or closed contacts are required to signal presence or absence of liquid at a discrete level.

The float extension arm moves a magnet which actuates (deactuates) a hermetically sealed reed switch. Actuation (deactuation) can be reversed by rotating the unit 180 degrees.

Specifications

Brand

Approvals & Certifications

  • ATEX Ex d IIC Ga/Gb T4 (-40° < Ta < 90° C), T5 (-40° < Ta < 75° C) & Ex ia IIC T3 (-40° < Ta < 125° C)
  • CSA Class I, Groups A, B, C, D, Divisions 1 & 2
  • CSA Class I, Groups C, D, Divisions 1 & 2 - Relay
  • CSA Single Seal (ANSI/ISA 12.27.01)
  • IEC Ex d IIC Ga/Gb T4 (-40° < Ta < 90° C), T5 (-40° < Ta < 75° C) & Ex ia IIC T3 (-40° < Ta < 125° C)
  • ISO 9001

Approvals & Certifications

  • Calibration
  • Compliance/Conformance
  • Dielectric Test
  • Inspection Report
  • Insulation Resistance
  • Quality Test Report

Conduit Connection

  • 3/4” NPT Female

Connection Style

  • Flange
  • Threaded

Electrical Connectors

  • 1/2” NPT Female
  • 18” 20 AWG Wire Leads - Reed Switch

Electrical Contacts

  • Normally Closed
  • Normally Open

Electrical Rating

  • 0.9 A at 110 Vac, Max.
  • 10 A at 115 Vac - DPDT Relay
  • 25 W, Max.
  • 3 A at 28 Vdc, Max.
  • 3 W Min. - SPST & SPDT (General-purpose)

Enclosure, Body Material

  • 303 Stainless Steel
  • 316 Stainless Steel

Flange Size - 2½” (DN 65)

  • 2-1/2” (DN 65) - 150#
  • 2-1/2” (DN 65) - 300#
  • 2-1/2” (DN 65) - 600#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - 300#
  • 3” (DN 80) - 600#

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - 300#

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150#
  • 6” (DN 150) - 300#

Fluid Specific Gravity

  • Minimum: 0.45

Materials of Construction

  • 316 Stainless Steel (Standard) - Float
  • Monel - Float
  • Polypropylene - Float

Maximum System Pressure

  • psi: 0 to 5,000 (kPa: 0 to 34,470, bar: 0 to 344.7) - Max.

Mounting

  • Side Mounting

Mounting Position

  • Horizontal

NACE & NIST

  • NACE MR-0175

NPT Connection

  • 1-1/2” NPT Male
  • 2” NPT Male

O-Ring Material

  • Viton GLT

Power Requirement

  • 120 Vac - DPDT Relay
  • 24 Vdc - DPDT Relay

Process Temperature

  • -40° to 204° C (-40° to 400° F)

Switch Type

  • Hermetically Sealed Reed Switch
  • SPDT
  • SPST

  • OEM Applications
  • Process Plants
