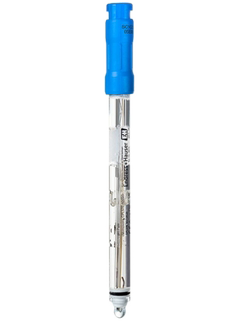

Digital pH Sensor Memosens CPL57E
Brand: Endress+Hauser AGThe pH sensor Memosens CPL57E is specially designed for pure water applications in all type of industries. The glass sensor offers long-term stability, thanks to the additional salt storage, and ensures highly accurate measured values in pure water.
Memosens CPL57E is suited for:
- Check of on-line measuring loops
- Analysis of grab samples (on-site as well as in the laboratory)
- Measurement at process points where regular checks are recommended
In the following applications:
- Boiler feed water
- Pure water
- Water with low ionic strength
- High accuracy and long-term stability of the pH electrode in pure water thanks to the additional salt storage
- Maintenance free sensor since the electrolyte does not need to be refilled
- Supports the requirements of quality management with tamper-proof data storage including serial number and calibration history
- Automatic temperature compensation thanks to an integrated temperature sensor
Specifications
Brand
Measuring Range
- pH 0 to 14 (1 to 12 Application Range)
Material of Construction
- Glass
Process Temperature
- -5° to 100° C (23° to 212° F)
- 0° to 80° C (32° to 176° F) Application Range
Process Pressure
- 1 bar, Not Intended for Continues Measurment in Process
Connection
- Inductive, Digital Connection Head with Memosens 2.0 Technology
Ingress Protection
- IP68
Temperature Sensor
- NTC 30 kΩ
Dimensions
- Diameter: 12 mm (0.47 inch)
- Shaft Length: 120 mm (4.72 inch)
Measurements in Low-conductivity Media, Such As
- Boiler Feedwater
- Pure and Ultrapure Water
