Vibranivo® - VN 6040 Vibration Level Switch
Brand: UWT GmbH
Application Area

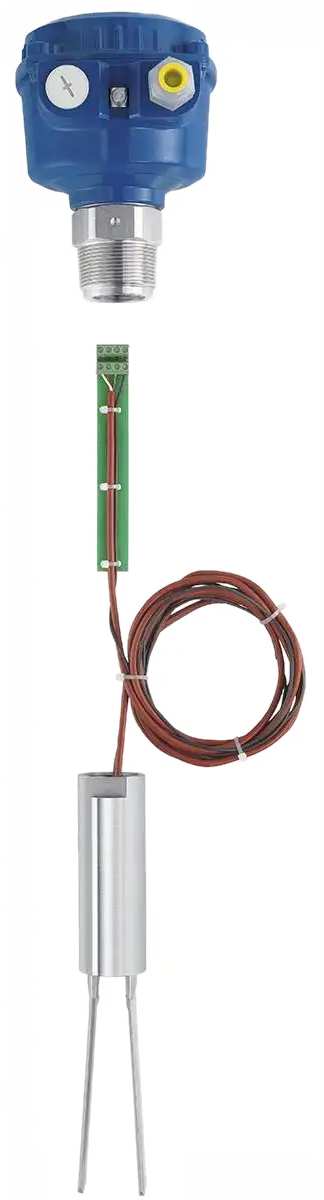

The VibranivoĀ® VN 6040 vibrating fork is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk materials.
The vibration fork is supplied as a kit for tube extension with a cable length of 1500 mm and 4000 mm.
Thus, the customer himself defines the length of the probe via the tube length.
Due to its high sensitivity, the point level probe is particularly suitable for very light bulk solids.
The VN 6040 offers more space for wiring due to the larger housing and additionally a pressure-resistant design for use in the GasEx area.
Features- Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
- Flexibility in probe length due to self-assembly kit
- Flameproof version available for use within potentially explosive atmospheres (gas)
Specifications
Brand
Measurement Principle
- Vibration (Fork)
Measuring Task
- Point Level Measurement
Version
- Pipe Extension (Screwed)
- Enhanced Sensitivity
- Vibrasil 70
- Vibrasil 90
Medium
- Solids
Mounting Position
- Top
- Horizontal
- On a Socket
Ambient Temperature
- -40Ā°C ā¦ +60Ā°C (-40 ā¦ +140Ā°F)
Process Temperature
- -40Ā°C ā¦ +150Ā°C (-40Ā°F ā¦ +302Ā°F)
Process Pressure
- -1 bar ā¦ +16 bar (-14.5 psi ā¦ +232 psi)
Minimum Sensitivity
- > 20 g/l (> 1.2 lbs/ftĀ³)
- Option Enhanced Sensitivity: > 5 g/l (> 0.3 lbs/ftĀ³)
- Option Vibrasil: > 5 g/l (> 0.3 lbs/ftĀ³)
Housing Type
- Standard
- Flameproof
- Increased Safety
Housing Material
- Aluminum
Housing Protection Rating
- IP66, NEMA Type 4X
Threaded Connection
- ā„ R 1Ā½"
- ā„ NPT 1Ā½"
Flange Connection
- ā„ 2" / ā„ DN100
Hygienic Fittings
- Triclamp 2"
Wetted Materials
- Stainless Steel 1.4305 (303)
- Stainless Steel 1.4404 (316L)
- Stainless Steel 1.4541 (321)
Mechanical Load
- Tube: 100 Nm
- Oscillating Rods: 0.6 kN
Minimum Immersion Length
- 1500 mm (59")
Maximum Immersion Length
- 4 m (13.15')
Power Supply
- 19...230 VAC
- 12.5...36 VDC
- Universal Voltage (19...55 VDC / 19...230 VAC)
- NAMUR
Signal Output
- Relay SPDT
- Relay DPDT
- Transistor PNP
- NAMUR
- 8/16 mA
- 4-20 mA
Approvals
- CE, General Purpose, ATEX, IEC-Ex, TR-CU, INMETRO, FM, CSA
Explosion Protection
- Dust Ignitionproof (Ex t)
- Intrinsic Safe (Ex i)
- Explosionproof/ Flameproof (Ex d)
- Increased Safety (Ex de)
Hygienic / Pharma
- EG 1935/2004
- FDA
Optical Indicator
- LED
Adjustment Possibility
- Adjustable Sensitivity
- Adjustable Output Delay
- Switchable Logic (Fail Safe High - Fail Safe Low)
- Chemicals
- Power
- Metal
- Building, Cement & Quarry
- Food & Beverage
- Synthetics
