BT4 Series Horizontal Multi-Stage Booster Pump

Brand: Franklin Electric Co, Inc.

Add Product to My Catalog

The BT4 horizontal booster pump is a low to medium capacity, high pressure, multi-stage unit.

The BT4 booster pump can function as a multi-purpose high pressure pump, boosting water pressure from either city mains or private water systems. It is also ideal for applications that require more pressure than flow.

Size ranges from 5 gpm to 45 gpm.

Features

5-25 GPM BT4 Series

Cast Iron:

Designed for boosting water pressure from a variety of sources including municipal and private water systems
Stainless steel discharge head on all models
Cast iron motor bracket with a rugged support foot for horizontal or vertical mounting and a handle for portability of the unit
1-inch suction and 1-inch discharge are the same across the entire line, simplifying installation and maintenance
Built by Franklin Electric’s patented (U.S. Patent 7,290,984) Tri-Seal floating stage system, for maximum efficiency, longevity and performance
Assembled with the highest quality materials of construction, such as Acetal for impellers,
Modified PPO for the diffusers and 300 series stainless steel for the hub, eye seals, shaft, and shell
Easily serviced through a back pull-out design, which leaves all plumbing and the pump undisturbed in their original location
Industry proven square flange motors
Single-phase: 1/2 through 2 hp motors are dual voltage, set to run with either 115 V or 230 V incoming power, while 3 hp are 230 V only
Shut-off pressures up to 270 psi, flow rates from 5 to 25 gpm, and temperatures up to 120 °F / 49 °C

Stainless Steel:

Includes all of the cast iron features above plus:
Modified PPO mechanical seal for corrosive fluids.
Three-phase also available: 1/2 through 3 hp motors are dual voltage set to run with either 208-230 V or 460 V incoming power.
Stainless steel motor bracket with a rugged support foot for horizontal or vertical mounting, and a handle for portability of the unit.
Designed for industrial applications.

BT4 Series 56C Pump Ends

56C standard motor bracket for use with any customer-supplied motor
All stainless steel construction, including a stainless steel bracket with a rugged support foot for horizontal or vertical mounting and a handle for portability
Built with Franklin's patented (U.S. patent) 7,290,984 Tri-Seal floating stage system, providing maximum efficiency, longevity, and performance
Acetal impellers, Modified PPO diffusers, and 300-series stainless steel hub, eye seals, shaft, and shell
Mechanical seal with standard phenolic/ceramic faces, FKM elastomers, and stainless steel components
Shut-off pressures up to 270 psi, flow rates from 5-25 gpm

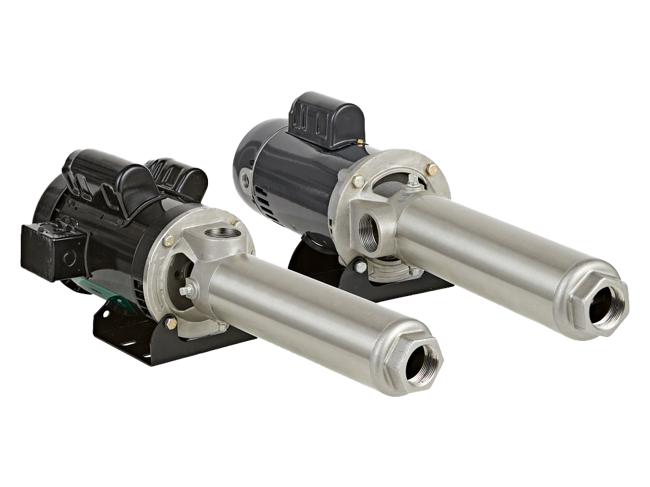

35-45 GPM BT4 Series

Designed for boosting water pressure from a variety of sources including municipal and private water systems
Enhanced hydraulics for 35 & 45 GPM nominal ratings to deliver more efficient pressure boosting
Robust stainless steel bracket, shell & discharge provide optimum corrosion protection
Equipped with 1.5" NPT connections at inlet and outlet minimize system friction loss
Versatile bracket can be rotated in 90° increments for simplified, compact plumbing arrangements
Multiple bracket drain & pressure tapping's enable draining in any position and provide for bypass and accessory plumbing
Back pull-out design enables motor removal for servicing without disturbing either the pump or plumbing
NEMA standard 56C keyed shaft motors are readily available in ODP, TEFC enclosures; 1 & 3-phase for common voltages
Pump ends (less motors) available to fit an existing 56C motor
