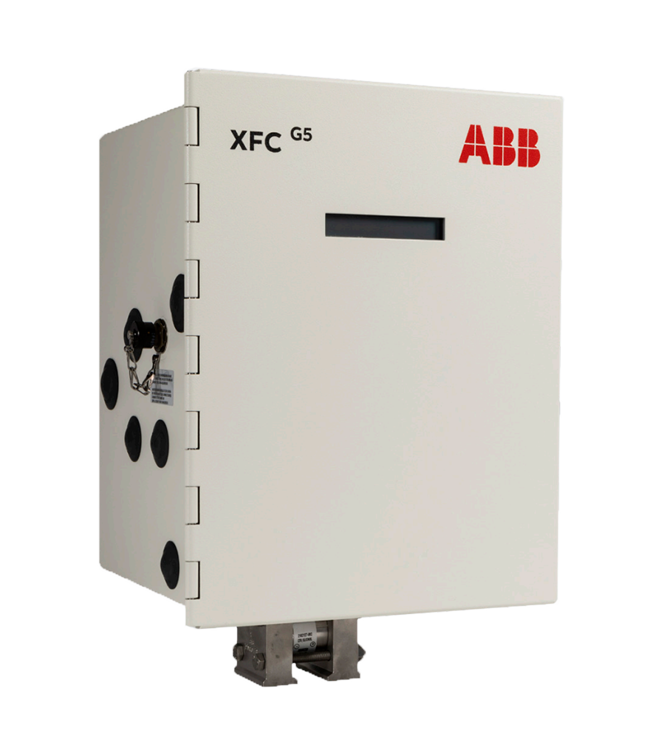

XFCG5 Extendable Flow Computer

Brand: ABB Group
Add Product to My Catalog

The XFCG5 includes an Integral Multivariable Transducer (XIMV) to measure differential pressure, static pressure and temperature from a single differential pressure meter run.  The XIMV is housed in a shielded, environmentally-protected enclosure which is mounted inside the flow computer enclosure and is characterized and calibrated at the factory.  Multi-tube capability is available in each unit and is easily invoked with a few configuration changes and interface connection to external transducers, either digital or analog.

The processing and memory capability of the XFCG5 allows the user to run more applications faster than ever before. Up to twenty (20) AGA3 measurement tubes performing full calculations once a second or eight (8) wells with fully configured control and measurement applications for liquid and gas.
Features
  • Smart Integral Multivariable Transducer (XIMV)
  • Comprehensive custody quality data history
  • Automation, control, alarming and data logging capability
  • Base I/O targeted at low cost automation projects
  • New PI operational range
  • Quick easy installation
  • WiFi and Bluetooth for local wireless connectivity
  • On-board Ethernet port
  • Backward compatibility
  • Extendable hardware and software

1 - 3 of 3 Part Numbers
XFCG5 6410
XFCG5 6410
ABB Dimensions: 10” Wide x 13.2” High x 9.37” Tall (254 x 335.28 x 233 mm), Max I/O Modules: 0
XFCG5 6413
XFCG5 6413
ABB Dimensions: 12.76” Wide x 17.83” High x 10.27” Tall (324 x 452.76 x 260.83 mm), Max I/O Modules: 3
XFCG5 6713
XFCG5 6713
ABB Dimensions: 14.92” Wide x 21.85" High x 13.71” Tall (379.53 x 554.86 x 348.23 mm), Max I/O Modules: 6
1 - 3 of 3 Part Numbers

Specifications

Brand

Accuracy

  • ± 0.05 % of user calibrated Spans from 20 % to 100 % of URL

Temperature Effect

  • ± 0.075 % of URL

Stability

  • ± 0.1 % of URL

Certifications & Approvals

  • EMC
  • IECEx
  • ATEX
  • CSA

Battery Capacity

  • Maximum 26 AH
  • Maximum 52 AH

Enclosure / Body Material

  • Enclosure: Powder-Coated Aluminum

Environmental Protection

  • Type 3R

Mounting

  • Direct Mount
  • Pipe Mount
  • Wall Mount

Operating Temperature

  • -40° to 140° F (-40° to 60° C)

Storage Temperature

  • -40° to 185° F (-40° to 85° C)

Humidity

  • 0 to 95 % Non-Condensing

Repeatability

  • Temperature: ± 0.2° F (± 0.12° C) over Operating Range

Power

  • Nominal 12 Vdc battery

Documentation

Brochure

Catalog

Certificate

Manual
