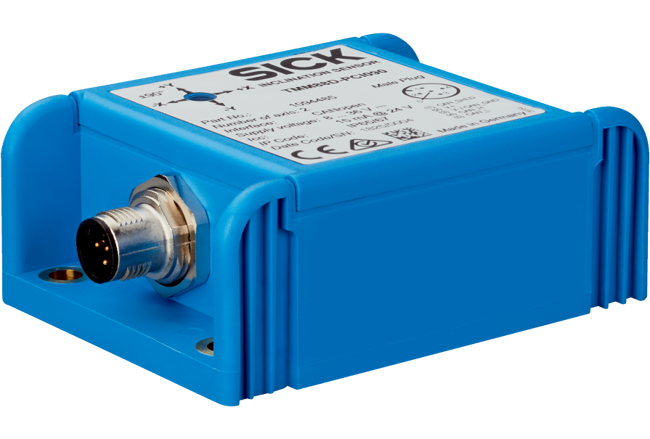

TMS/TMM88 Dynamic Inclination Sensor

Brand: Sick AG

The inclination sensors from the TMS/TMM Dynamic product family are setting new standards with respect to signal quality and response time. Thanks to an intelligent sensor fusion filter, not only are they extremely quick to respond – they are also highly precise, even when influenced by external accelerations.

The foundation for this is a six-axis inertial measurement unit (IMU), consisting of an acceleration sensor and a gyroscope that is based on MEMS technology. Various configuration options enable the dynamic inclination sensors to be flexibly adapted to the application.

The rugged design with enclosure ratings up to IP69 is able to withstand even the harshest ambient conditions.

Features

Inclination measurement in two axes without mutual interference
Single-axis angle measurement over the full 360° with configurable zero point
High signal quality and quick response time thanks to innovative and powerful sensor fusion algorithm
Access to raw data of the acceleration sensor and gyroscope opens up additional application possibilities
Use under the harshest conditions possible thanks to completely encapsulated electronics and high enclosure rating
Flexible configuration via CANopen or SAE J1939 as well with the PGT-12-Pro

1 - 8 of 8 Part Numbers

per page:

1094483

Communication Interface - CANopen
Number of Axis - 1
Measuring Range - 360°
Housing Material - Plastic (PBT)
Type - TMS88D-PCI360

1094485

Communication Interface - CANopen
Number of Axis - 2
Measuring Range - ± 90°
Housing Material - Plastic (PBT)
Type - TMM88D-PCI090

1094486

Communication Interface - SAE J1939
Number of Axis - 1
Measuring Range - 360°
Housing Material - Plastic (PBT)
Type - TMS88D-PJI360

1094488

Communication Interface - SAE J1939
Number of Axis - 1
Housing Material - Plastic (PBT)
Type - TMM88D-PJI090

1098668

Communication Interface - CANopen
Number of Axis - 1
Measuring Range - 360°
Housing Material - Aluminum
Type - TMS88D-ACI360

1098669

Communication Interface - CANopen
Number of Axis - 1
Housing Material - Aluminum
Type - TMM88D-ACI090

1098670

Communication Interface - SAE J1939
Number of Axis - 1
Measuring Range - 360°
Housing Material - Aluminum
Type - TMS88D-AJI360

1098671

Communication Interface - SAE J1939
Number of Axis - 1
Housing Material - Aluminum
Type - TMM88D-AJI090

1 - 8 of 8 Part Numbers
