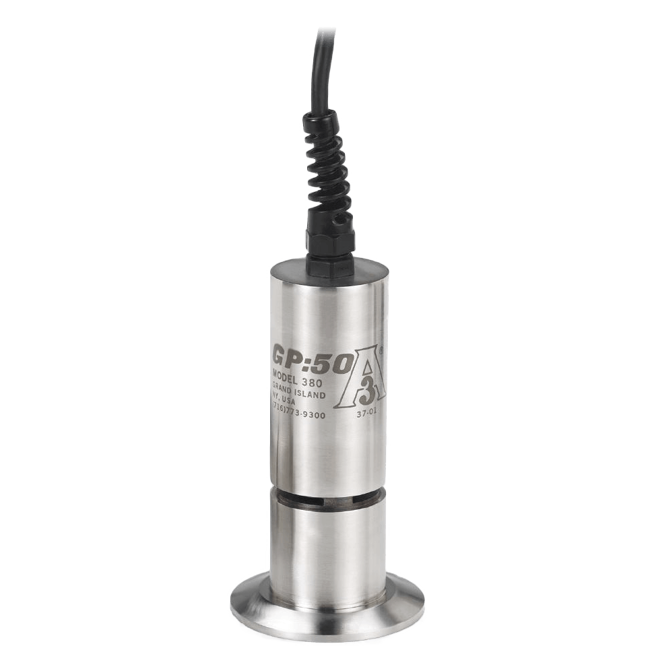

Model 380 Tri-Clamp Pressure Transmitter
Brand: GP:50 New York Ltd
Features
- Output Signal: 4-20 mA
- Supply Voltage: 13 to 37
- Pressure Range: 0 to 30" WC [0 to 1,000 psi (0 to 68.95 bar, 0 to 6,895 kPa)]
- Burst Pressure: 6 times FSO
- Proof Pressure: 3 times FSO
- Electrical Connections: 20 feet 6 conductor vented Hytrel jacketed cable
- Process Connection: Tri-Clamp 1/2" to 3"
- Temperature Range:
- Operating: -29° to 93°C (-20° to 200°F)
- Compensated: -17° to 82°C (0° to 180°F)
- Effect on Zero/Span: <±2% Full Scale Output at 100°F
- Static Accuracy: Standard: ±0.5% Full Scale Output / Improved: ±0.2%
- Materials of Construction:
- Housing: 316 Stainless Steel
- Wetted Parts: 316 Stainless Steel
Specifications
Brand
Accuracy
- ± 0.2 % of Full Scale Output
- ± 0.5 % of Full Scale Output
Burst Pressure
- 6 times Full Scale Output
Circuit Protection
- EMI/RFI Protected
Compensated Temperature
- -17° to 82° C (0° to 180° F)
Electrical Connectors
- 20 feet, 6-Conductor, Vented Hytrel Jacketed Cable
Enclosure, Body Material
- 316 Stainless Steel
Operating Temperature
- -29° to 93° C (-20° to 200° F)
Output
- 4-20 mA
Pressure Range
- bar: 0 to 68.9
- Inches WC: 0 to 30
- kPa: 0 to 6,895
- psi: 0 to 1,000
Proof Pressure
- 3 times Full Scale Output
Resistance
- 1,200 ohm Max.
Span & Zero Effect
- < ± 2 % of Full Scale Output at 38° C (100° F)
Supply Voltage
- 13 to 37 Vdc
Wetted Materials
- 316 Stainless Steel
Zero Balance
- ± 2 % of Full Scale Output
