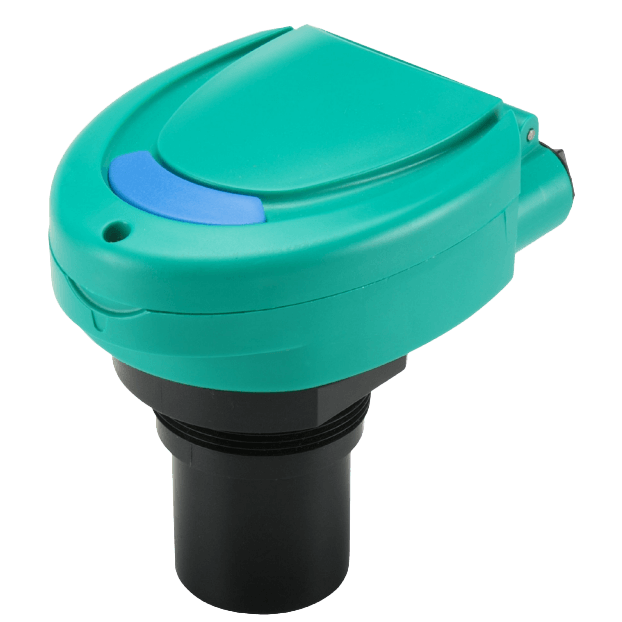

UCL-520 Ultrasonic Continuous Level Sensor
Brand: Gems Sensors, IncThe UCL-520 is a general-purpose two-wire ultrasonic transmitter providing noncontact level measurement up to 26.2 feet or 8 meters. It is ideally suited for challenging ultrapure, corrosive or waste liquids.
Push button calibrated, the UCL-520 is broadly selected for atmospheric bulk storage, day tank and waste sump applications. Media examples include wastewater and sodium hydroxide.
The PC/ABS enclosure is rated NEMA 4X, and the transducer is housed in rugged PVDF.
Features- To 26-feet (8 meters) range with 2" transducer
- 2" NPT mounting
- Setup is fast and easy. Incorporates push button calibration and LCD display
- 6-segment LCD display indicates level in inch or centimeter values
- 7.6 cm minimum beam width for applications with restricted space
- Fail-safe intelligence with diagnostic feedback for easy troubleshooting
Specifications
Brand
Accuracy
- Air: ± 0.2 % of Span
Applications
- Agriculture
- Chemicals
- Cleaning
- Electric Power
- Healthcare Services
- HVac Systems
- Mining
- Petrochemical
- Semiconductors
- Water & Wastewater
- Water Parks/Swimming Pools
Approvals & Certifications
- CE Compliance: EN 61326 EMC
BSP Connection
- G 2”
Conduit Connection
- Conduit Entrance: Dual, 1/2” NPT
Deadband
- 8” (203.2 mm)
Display
- LCD, 6-Digit
Enclosure, Body Material
- ABS FR
- Polycarbonate
- Transducer Housing: Rugged PVDF
Environmental Protection
- IP65
- IP66
- NEMA 4X
Gasket Material
- Mounting Gasket: Viton
Loop Resistance
- 500 ohms at 24 Vdc
Materials of Construction
- Transmitter Material: PVDF
NPT Connection
- 2” NPT
Output
- 4-20 mA, 2-Wire
Pressure Range
- bar: 0 to 2
- kPa: 0 to 200
- psi: 0 to 30
Process Temperature
- -20° to 71° C (-7° to 140° F)
Range
- 6 to 26.2 feet (1.8 to 8 metres)
Resolution
- 0.039” (1 mm)
Supply Voltage
- 12-28 Vdc
Temperature Range
- Electronics: -40° to 71° C (-40° to 160° F)
- Water and Waste Water
- Chemical
- Petrochemical
- Semiconductor
- Health Care
- Agriculture
- Mining
- Electric Power
- Cleaning
- Water Parks/Swimming
- HVAC Pools
