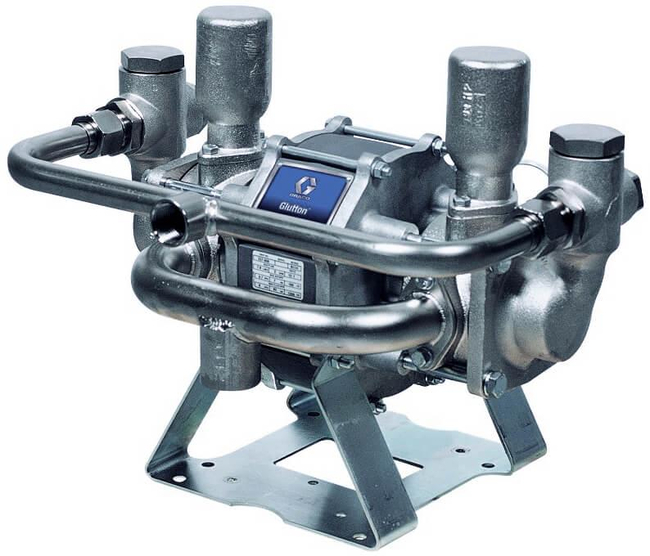

Glutton Plunger Pumps

Glutton Plunger Pumps

Brand: Graco, Inc
Add Product to My Catalog

The Glutton's bellows seal design pump is ideal for air assisted and airless spray applications.

The unique divorced duplex plunger style pumps are designed to handle more shear and heat sensitive materials. Pump ratios include 4:1, 12:1 and 25:1.
Features
  • Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials.
  • Reversible outlet manifold simplifies plumbing installations.
  • Vertical ball checks design ensures uniform ball wear and long life.

Specifications

Brand

Glutton 1200 Plunger Pumps - Air Inlet

  • 1/2” NPT Female

Glutton 1200 Plunger Pumps - Air Operating Range

  • 1.73-7.0 bar, 0.07-0.7 MPa

Glutton 1200 Plunger Pumps - Fluid Flow at 60 cpm

  • 7.5 Lpm

Glutton 1200 Plunger Pumps - Fluid Inlet

  • 1.25 Female NPT

Glutton 1200 Plunger Pumps - Fluid Outlet

  • 1” NPT Female

Glutton 1200 Plunger Pumps - Fluid Volume Per Cycle

  • 0.128 L

Glutton 1200 Plunger Pumps - Maximum Air Input Pressure

  • 7.0 bar, 0.7 MPa

Glutton 1200 Plunger Pumps - Maximum Continuous Pump Speed

  • 60 cpm

Glutton 1200 Plunger Pumps - Maximum Fluid Working Pressure

  • 83.0 bar, 8.3 MPa

Glutton 1200 Plunger Pumps - Maximum Operating Temperature

  • 65° C

Glutton 1200 Plunger Pumps - Maximum Suction Lift (Water)

  • 4.57 M

Glutton 1200 Plunger Pumps - Weight

  • 35.1 kg

Glutton 2500 Plunger Pumps - Air Inlet

  • 1/2” NPT Female

Glutton 2500 Plunger Pumps - Air Operating Range

  • 1.73-7.0 bar, 0.07-0.7 MPa

Glutton 2500 Plunger Pumps - Fluid Flow at 60 cpm

  • 3.4 Lpm

Glutton 2500 Plunger Pumps - Fluid Inlet

  • 1.25 Female NPT

Glutton 2500 Plunger Pumps - Fluid Outlet

  • 3/4” NPT Female

Glutton 2500 Plunger Pumps - Fluid Volume Per Cycle

  • 0.058 L

Glutton 2500 Plunger Pumps - Maximum Air Input Pressure

  • 7.0 bar, 0.7 MPa

Glutton 2500 Plunger Pumps - Maximum Continuous Pump Speed

  • 60 cpm

Glutton 2500 Plunger Pumps - Maximum Fluid Working Pressure

  • 170 bar, 17 MPa

Glutton 2500 Plunger Pumps - Maximum Operating Temperature

  • 65° C

Glutton 2500 Plunger Pumps - Maximum Suction Lift (Water)

  • 1.83 M

Glutton 2500 Plunger Pumps - Weight

  • 27.5 kg

Glutton 400 Plunger Pumps - Air Inlet

  • 1/2” NPT Female

Glutton 400 Plunger Pumps - Air Operating Range

  • 1.73-7.0 bar, 0.07-0.7 MPa

Glutton 400 Plunger Pumps - Fluid Flow at 60 cpm

  • 21.2 Lpm

Glutton 400 Plunger Pumps - Fluid Inlet

  • 1.25 Female NPT

Glutton 400 Plunger Pumps - Fluid Outlet

  • 1” NPT Female

Glutton 400 Plunger Pumps - Fluid Volume Per Cycle

  • 0.366 L

Glutton 400 Plunger Pumps - Maximum Air Input Pressure

  • 7.0 bar, 0.7 MPa

Glutton 400 Plunger Pumps - Maximum Continuous Pump Speed

  • 60 cpm

Glutton 400 Plunger Pumps - Maximum Fluid Working Pressure

  • 28.0 bar, 2.8 MPa

Glutton 400 Plunger Pumps - Maximum Operating Temperature

  • 65° C

Glutton 400 Plunger Pumps - Maximum Suction Lift (Water)

  • 4.57 M

Glutton 400 Plunger Pumps - Weight

  • 36.2 kg
