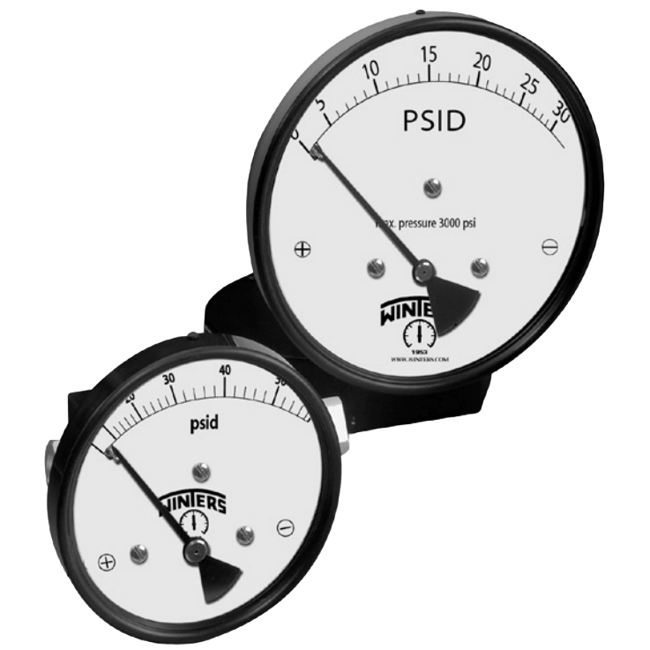

PPD Piston Pressure Gauge

Brand: Winters Instruments

Features
  • Standard Differential Range: 0/5 thru 110 psid (0.4/8 bar)
  • Maximum System Pressure Aluminum: 3,000 psi (200 bar)
  • Maximum System Pressure Bronze, Monel: 3,000 psi (200 bar)
  • Maximum System Pressure SS: 6,000 psi (400 bar)
  • Accuracy ±2% full scale ascending

Specifications

Accuracy

  • ± 2 % of Full Scale Value

Adapter

  • 1/2” NPT Female Stainless Steel

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

Approvals & Certifications

  • CRN

Differential Pressure

  • psid: 0 to 110 (kPa: 0 to 800, bar: 0 to 8)

Electrical Connectors

  • 1/4” NPT Female
  • Plug Connector DIN 43650

Electrical Contacts

  • Normally Closed
  • Normally Open

Electrical Rating

  • 0.25 A at 125 Vac/dc, 3 W
  • 1 A at 240 Vac/dc, 60 W
  • 3 A at 240 Vac/dc, 60 W

Enclosure, Body Material

  • Aluminum
  • Bronze
  • Monel
  • Plastic
  • Stainless Steel

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Fill Material

  • Glycerin

Lens

  • Acrylic Lens
  • Safety Glass

Maximum System Pressure

  • Aluminum psi: 3,000 (kPa: 20,000, bar: 200)
  • Bronze, Monel psi: 5,000 (kPa: 35,000, bar: 350)
  • Stainless Steel (SST) psi: 6,000 (kPa: 40,000, bar: 400)

Mounting

  • 2” Pipe Mounting Kit, Carbon Steel & Stainless Steel
  • Mounting Holes in Gauge Body for Field Mounting
  • Wall Mounting Kit

NACE & NIST

  • NACE for Sour Gas Applications

Name Plate, Tag Material

  • Stainless Steel with Stainless Steel (SST) Wire & Screw

NPT Connection

  • 1/2” NPT Female
  • 1/4” NPT Female

Piston Material

  • Aluminum
  • Bronze
  • Monel
  • Stainless Steel

Pressure Range

  • bar: 0 to 8
  • kPa: 0 to 800
  • psi: 0 to 110

Pressure Type

  • Differential

SAE Connection

  • 7/16”-20 SAE

Seat / Seal Material

  • Seal: Buna-N
  • Seal: Ethylenepropylene
  • Seal: Neoprene
  • Seal: Teflon
  • Seal: Viton

Size

  • Dial: 2-1/2” (63 mm)
  • Dial: 3-1/2” (90 mm)
  • Dial: 4-1/2” (115 mm)

Special Cleaning & Packaging

  • Cleaned for Oxygen Service

Switch Type

  • SPDT

Wetted Materials

  • Aluminum
  • Bronze
  • Monel
  • Stainless Steel

  • Used for Filtration Systems, Low Pressure Gas Installations and for Leak Detection in Low Pressure, High Static Systems
