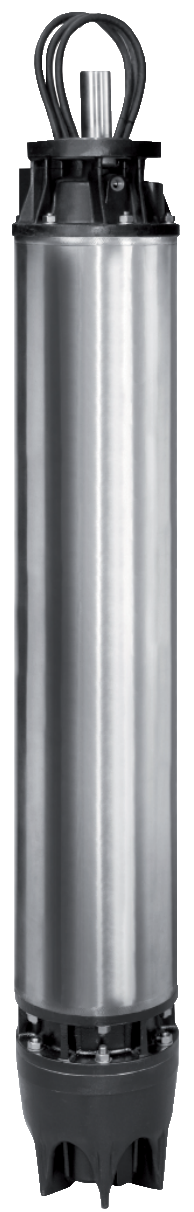

TR10 Submersible Motors

Brand: Dab Pumps S.p.A
Add Product to My Catalog

TESLA TR 10” Asynchronous two-pole and four-pole submersible motors, of a rewindable type, with external shell made in AISI 316 stainless steel and supports in cast iron with paint coating in the standard version.

The cooling and lubrication of the thrust bearing assembly and carbon bushes is provided by a mixture of water and glycol.

The squirrel-cage rotor mounted on Mitchell self-centering thrust bearing. The motor is also available in full stainless steel AISI 316 version or AISI 904 version.

The PE2 wound motor is suitable for use with variable frequency drive (30 Hz-50/60 Hz).

The motor is equipped with 26 ft three-core cable directly connected with the windings and it’s available with DOL or STAR-DELTA starting type.

The cable is certified to ACS and WRAS and KTW standards. Overload protection must be provided by user.

On request PT100 and PTC temperature sensors.
Features
  • TR10 Stator
    • The rewindable stator is inserted in an AISI 316 stainless steel outer shell (on request AISI 904)
    • The version sold by DAB Pumps in uses the higher temp PE2+PA windings and so can be used with a VFD
  • TR10 Thrust Bearings
    • Mitchell type thrust bearing unit consisting of tilting pads in graphite and ceramic disc
  • TR10 Shaft
    • Shafts made of stainless steel with end part with key coupling. Squirrel-cage rotor made in copper
    • In the USA the motor is equipped with a SiC/SiC mechanical seal as standard

Specifications

Brand

Flange

  • 10"

Insulation Class

  • F

Degree of Protection

  • IP58 - IP68 optional

Minimum Cooling Flow

  • 1.64 ft/sec

Voltage Tolerance

  • +6% / -10%

Max Starts

  • 8/h

Max Operating Depth

  • 984 ft

Horizontal Operation

  • 100 HP - 230 HP

Range

  • Other Voltage and frequencies available on request
  • 2-Pole three-phase 460 V 60 Hz: From 100 hp to 260 hp
  • 4 Pole three-phase 460 V 60 Hz: From 40 hp to 125 hp
