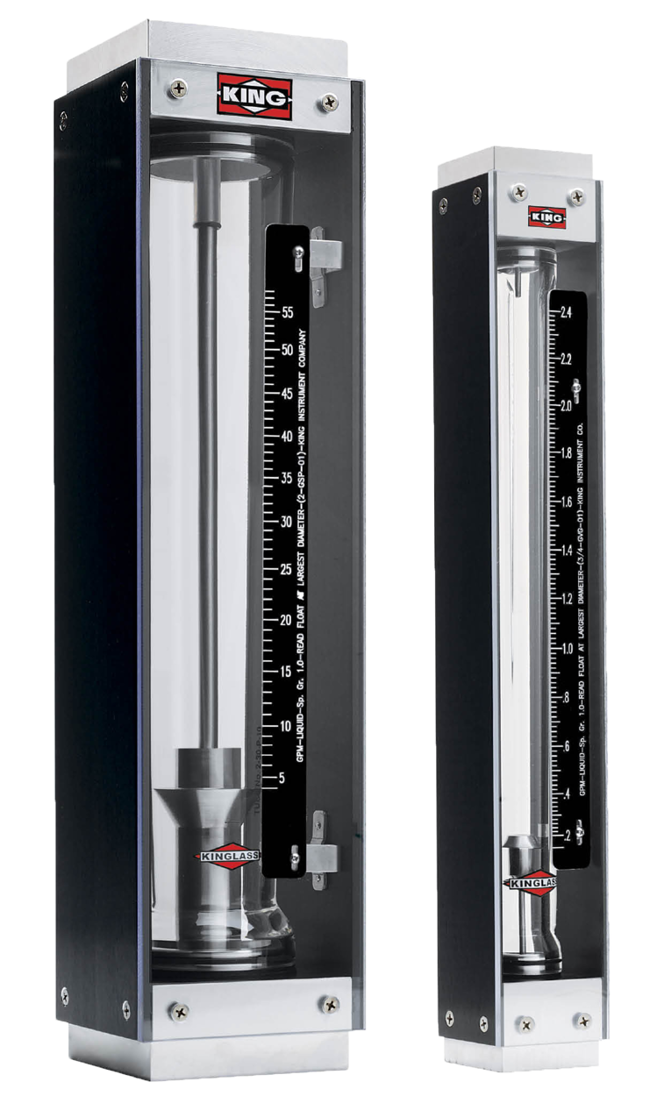

7450 Series Glass Tube Flowmeter
Brand: King Instrument CompanySide plate style meters with 75 mm or 150 mm borosilicate glass tube and 316L stainless steel or brass connections. Valves optional.
Available with Hastelloy® C-276 construction for greater chemical resistance.
Features- Borosilicate Kinglass Meter with Side Plate
- Material Options for Higher Chemical Resistance
- Optional Control Valve; Panel - Mountable
- 75mm, 150mm Detachable, Direct Reading Scales
- 0.48 – 7.4 GPM Water; 2 – 20 SCFM Air
1 - 12 of 3,040 Part Numbers
745-3G1-1-1-1-1
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - Millimeter
- Valve Option - Brass - Inlet
- Flow Order Number - 3G1
745-3G1-1-1-1-2
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - Millimeter
- Valve Option - Brass - Outlet
- Flow Order Number - 3G1
745-3G1-1-1-1-3
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - Millimeter
- Valve Option - No Valve
- Flow Order Number - 3G1
745-3G1-1-1-1-4
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - Millimeter
- Valve Option - 316L SS - Inlet
- Flow Order Number - 3G1
745-3G1-1-1-1-5
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - Millimeter
- Valve Option - 316L SS - Outlet
- Flow Order Number - 3G1
745-3G1-1-1-2-1
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - GPM Water@70°F
- Valve Option - Brass - Inlet
- Flow Order Number - 3G1
745-3G1-1-1-2-2
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - GPM Water@70°F
- Valve Option - Brass - Outlet
- Flow Order Number - 3G1
745-3G1-1-1-2-3
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - GPM Water@70°F
- Valve Option - No Valve
- Flow Order Number - 3G1
745-3G1-1-1-2-4
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - GPM Water@70°F
- Valve Option - 316L SS - Inlet
- Flow Order Number - 3G1
745-3G1-1-1-2-5
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - GPM Water@70°F
- Valve Option - 316L SS - Outlet
- Flow Order Number - 3G1
745-3G1-1-1-3-1
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - LPM Water@70°F
- Valve Option - Brass - Inlet
- Flow Order Number - 3G1
745-3G1-1-1-3-2
- Scale Model - 75mm (3”) Scale
- Fitting Material - Brass
- O-ring Material - EPR
- Scale - LPM Water@70°F
- Valve Option - Brass - Outlet
- Flow Order Number - 3G1
1 - 12 of 3,040 Part Numbers
Specifications
Brand
Metering Tube
- Borosilicate Kinglass
Internal Components
- 316L SS
Fitting Material
- Brass
- 316L SS
Inlet/Outlet Fittings
- FNPT, horizontal
O-Ring
- Viton
- Buna N
- EPR
- Kalrez®
Capacities
- Water: 0.48 to 7.4 GPM
- Air: 2 to 20 SCFM
Scale
- 75 mm (3”), 150 mm (6”) direct reading, detachable
Accuracy
- ± 5% of full scale flow, 75 mm
- ± 3% of full scale flow, 150 mm
Turndown
- 10:1
Repeatability
- 1%
Maximum Temperature
- Liquid: 200 °F
- Gases: 250 °F
Maximum Pressure
- 200 psig
