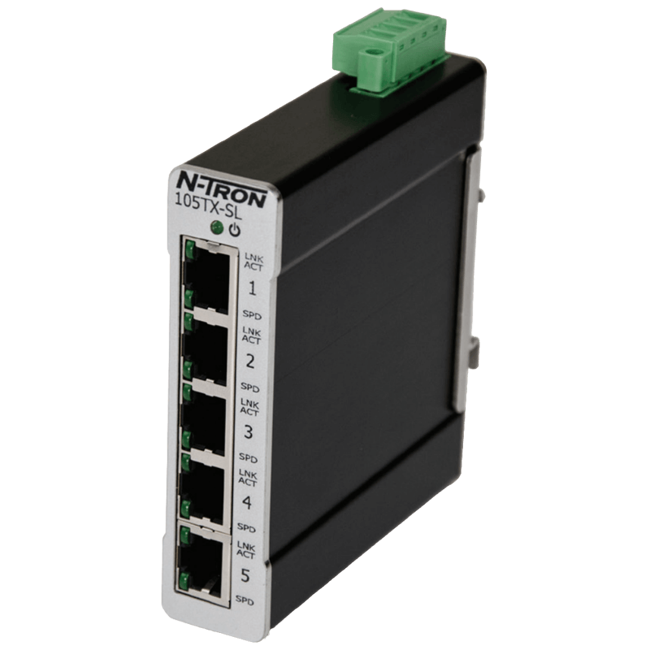

105TX-SL Industrial Ethernet Switch
Brand: Red Lion ControlsThe compact N-Tron 105TX-SL unmanaged Industrial Ethernet switch is ideal for industrial applications that demand dependable performance under harsh conditions.
The ultra-slim five-port device offers exceptional reliability and performance for a range of mission-critical applications including data acquisition, Ethernet I/O and process control.
Delivered in a rugged industrial metal enclosure, the 105TX-SL provides five high performance 10/100BaseTX copper ports with full wire speed communications up to 1.0 Gb/s throughput for robust network support.
The unit boasts exceptional MTBF and extended tolerances to shock, vibration, temperature fluctuations and noise common elements in factory floor control networks, utilities, wastewater treatment, wind turbines, rail car, intelligent traffic control and transportation applications.
Features- Five 10/100BaseTX RJ-45 ports
- Ultra-slim, space-saving design
- -40° to 80° C (-40° to 176° F) operating temperature
- IEEE 802.3 compliance
- ESD and surge protection diodes on all ports
- Store-and-forward technology
- Supports full/half duplex operation
- Full Wire speed communications
- Up to 1.0 Gb/s maximum throughput
- Auto negotiation, auto sensing speed, duplex, and flow control
- MDIX auto sensing cable
- Redundant power inputs (10-30 Vdc)
- LED link/activity status indication
- Rugged DIN-rail enclosure
- >2M Hours MTBF
Specifications
Brand
Applications
- Ethernet I/O Applications
- Factory Floor Control Networks
- Industrial Applications
- Industrial Data Acquistion
- Intelligent Traffic Control & Transportation
- Process Control
- Rail Car
- Utilities
- Wastewater Treatment Plants
- Wind Turbines
Approvals & Certifications
- ABS for Shipboard Applications
- CE
- EMC: EN 61000-6-4 - Class A (Emissions), EN 55024 (Immunity), EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (SURGE), EN 61000-4-6 (RF), EN 61000-4-8 (PFMF), EN 61000-4-11 (VDI)
- EMI: ANSI C63.4
- FCC Title 47 Part 15 Class A ICES-003 - Class A
- GOST-R
- IEEE 802.3, 1613 for Electric Utility Substations
- RoHS
- UL (C,US) Class I, Div. 2, Groups A, B, C, D, T4A
Circuit Protection
- ESD Protection
- Surge
Electrical Connectors
- 10/100Base-TX: Five (5) RJ45 Copper Ports
Environmental Protection
- NEMA TS1
- NEMA TS2
Humidity
- 10 to 95 % Relative Humidity, Non-Condensing
Indication
- LED Link / Activity Status Indication
Input
- 10-30 Vdc (Regulated)
- Maximum
Mounting
- DIN Rail Mounting
Operating Temperature
- -40° to 85° C (-40° to 185° F)
Power Supply
- N-Tron DIN Rail: 1.3 A at 24 Vdc
Shock
- 200 G at 10 milliseconds
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- 50 G, 5 to 200 Hz, Triaxial
Wiring
- Wiring Clearance Front: 2” (5.1 cm)
- Wiring Clearance Top: 1” (2.6 cm)
