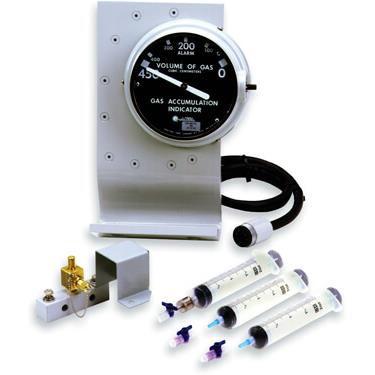

038 Gas Accumulation Indicator

Brand: Qualitrol Company

Mechanical measurement of gas accumulation within a conservator style transformer.

Alarm functions warn when level hits maximum limit and remains on until sufficient gas is removed.

Sampling port allows your personnel to draw-off of gas for laboratory analysis.
Features
  • Provides continuous indication of the total accumulated gases
  • SPDT switch provides a latching alarm when the accumulated gas displaces a greater volume of oil than the switch set point
  • 6" (152.5 mm) dial face is set at 15° angle to be easily viewed from the base of the transformer or related apparatus
  • Provides continuous indication of the total accumulated gases
  • An SPDT switch built into the gage case actuates when the accumulated gas displaces greater than 200cc of oil, triggering a latching alarm that will remain on until sufficient gas is removed
  • Gas can be drawn off from the accumulator for analysis via the integrated sampling port
  • Optional “Sampling Valve Kit” (VLV-602-1) allows the samples to be drawn off more easily at the bottom of the tank
  • Optional “Sampling Syringe Kit” (KIT-005-1) provides useful tools and hardware to take measured samples of gas
  • Aluminum case and flange are finished with a thermosetting powder-coat
  • Stainless steel hardware, cup and bezel and UV stabilized polycarbonate lens for maximum durability
  • Dial face is set at a 15° angle for easy view from the base of the transformer
  • Large 6" (152.5 mm) dial face can be customized to maximize readability for the application

Specifications

Ambient Humidity

  • 35 to 100 %

Bezel Material

  • Stainless Steel

Case

  • Sealed or Vented, Meets IP54

Case Material

  • Die Cast Aluminum, ASA #70 Light Grey Thermosetting Powder Coat Finish

Connection Type

  • QUALITROL, Military, or ANSI Standard Quick Disconnect Connector

Cup Material

  • Stainless Steel

Dial Diameter

  • 6.00” (152 mm)

Dielectric Strength

  • 1,500 Vac for One Minute

Flange Material

  • Aluminum, Painted ASA #70 Grey Per FS-102

Float Material

  • Nitrophyl

Indicating Accuracy

  • ± 2° C

Inductive Power Factor

  • 72%

Lens

  • Glass
  • Tempered Glass
  • UV Stabilized Polycarbonate

Mounting

  • 2-5/8 x 1.5” LG Bolts or Studs on 4.25” Centers, Unit Must be Mounted on a Horiznotal Plane

Sampling Valve Connection

  • 1/4”-18 NPT

Standard Dial Range

  • 0 to 450 CC (Cubic Centimeters)

Standard Operating Temperature

  • -40° to 80° C (-40° to 176° F)

Switch Rating

  • 1/2 A at 125 Vdc, Resistive
  • 1/4 A at 250 Vdc, Resistive
  • 15 A at 125, 250 & 480 Vac, Resistive

Switch Type

  • Snap-Action - SPDT

Switching Accuracy

  • ± 2° C

Tank Connection

  • 3/8”-18 NPT Female (Standard)
