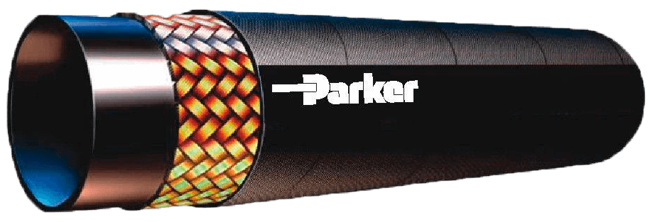

Fuel Dispensing Hose Meets BS EN 1360. Series - BSPHPM
Brand: Parker HannifinBSPHPM Fuel dispensing hose is made as per the specification BSEN 1360 type 3 2013.
The industry standard hose manufactured to strict international quality specifications in order to provide consistency of performance.
It offers a long service life.
The hose confirms to Council Directive 94/9/EC of (ATEX) Category 2 non electrical equipment's and is available in Blue, Red, Green, Black.
Features- A light weight compact design.
- Tube suitable to various types of fuels like petrol, diesel, gasoline.
- Abrasion & Ozone resistant.
- Easy to handle.
- Used in most of the kerb pumps, fuel filling stations.
Specifications
Brand
Applications
- Fuel Transfer
Hose I.D. (inch)
- 5/8 - 1
Hose I.D. (mm)
- 16 - 25.4
Hose I.D. (Size)
- -10 to -16
Hose O.D. (inch)
- 0.99 - 1.28
Hose O.D. (mm)
- 25.3 - 32.5
Maximum Working Pressure (bar)
- 16
Maximum Working Pressure (Mpa)
- 1.6
Maximum Working Pressure (psi)
- 232
Maximum Working Temperature (°C)
- 55° C
Maximum Working Temperature (°F)
- 131° F
Media
- Fuels
Minimum Bend Radius (inch)
- 3 - 6
Minimum Bend Radius (mm)
- 80 - 150 80 to 150
Minimum Working Temperature (°C)
- -40° C
Minimum Working Temperature (°F)
- -40° F
Temperature Range (°C)
- -40° to + 55° C
Weight (kg/m)
- 0.53 - 0.71
Weight (Lbs/Ft)
- 0.36 to 0.48
- For Dispensing Fuels like Petrol, Gasoline, Diesel at Filling Stations.
