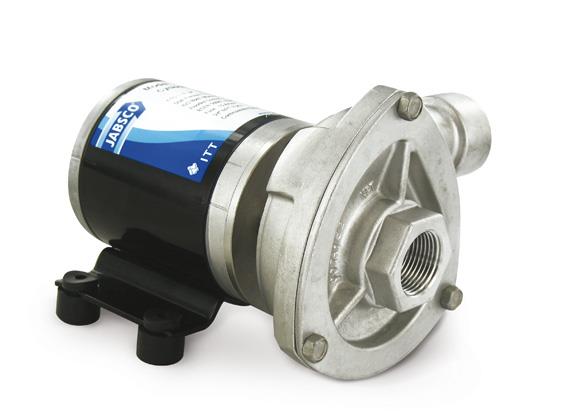

50860 Series High Pressure Cyclone Centrifugal Pump
Brand: Jabsco
"Cyclone Pump" Stainless Steel DC Motor/Pump Unit.
Features- Heavy duty robust stainless steel construction
- One tool servicing (3/8" Spanner)
- Virtually silent running centrifugal pump
- Long-life DC motor
- Rotatable head 90° segments
- Anti-clogging impeller design
- Long-life mechanical seal
- ISO 8846 MARINE and USCG Regulations for Ignition Protection
- ISO 8849 MARINE Bilge Pump Standard
1 - 4 of 4 Part Numbers
1 - 4 of 4 Part Numbers
Specifications
Brand
Body Material
- Stainless Steel
Duty Cycle
- 30 minutes On, 30 minutes Off @ 20°C Ambient, 20°C Fluid Temperature at 2.5 metres of Water (0.25 bar) (See Performance Curve)
Motor Brush Life
- 2500 Hours
Port Type
- 3/4” (19 mm)
Voltage
- 12 or 24 Vdc
Weight
- 10.5 kg (23.1 lbs)
