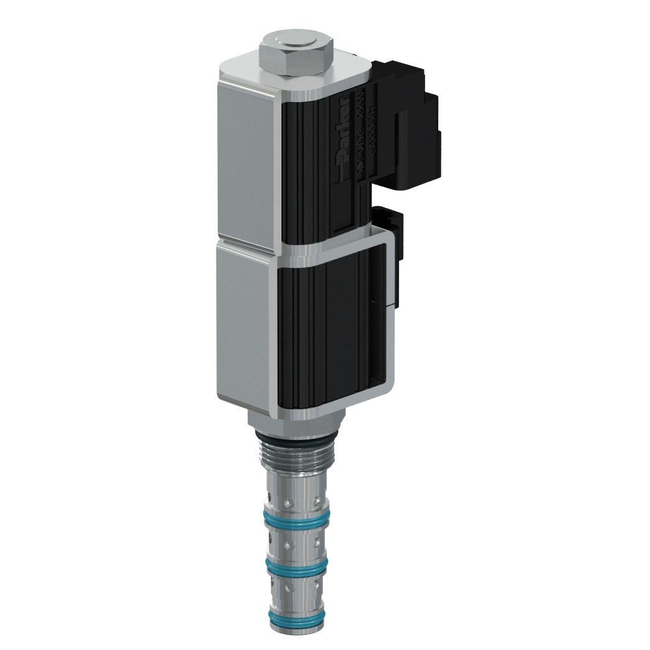

Directional Control Proportional Valves
Brand: Parker HannifinParker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).
Parker’s selection of 3-position, 4-way proportional directional control valves provide predictable and precise controls for applications that require bidirectional flow and controllability.
These valves are capable of handling flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).
These valves can be used in conjunction with an external compensator finer control is required, however these valves are ideal for variable flow actuator or motor applications that need exact control with to ability to stop completely and an acceptable rate of leakage due to the inherent characteristic spool design.
Parker’s 3-position, 4-way proportional directional control valves can pair with any Current Controlled Pulse Width Modulation (PWM) valve driver and can be used on a variety of mobile and industrial applications within the agriculture, construction, and manufacturing markets.
Features- One piece cartridge housing
- Regulates flow proportionally to input solenoid current
- All external parts zinc plated
Specifications
Brand
Cavity Size
- C08-4, C10-4
Coil Nut Torque (Lbs/ft)
- 3
Coil Nut Torque (Nm)
- 4.1
Coil Type
- 1/2” Super Coil, 5/8” Super Coil High Watt (CAP)
Electrical Signal Flow Variation
- ± 15 % @ 75 % Nominal Current & Constant DeltaP Maintained with Pressure Compensator
Filtration Ratings
- ISO 4406: 1999 Code 18/16/13
Frequency (Hz)
- 100-400
Hysteresis
- Less than 6 %
Installation Torque (Lbs/Ft)
- 22, 25
Installation Torque (Nm)
- 30, 34
Leak Rate (cc/min)
- 10 @ 3000 psi (210 bar)
Maximum Inlet Pressure (bar)
- 350, 210
Maximum Tank Pressure (bar)
- 210, N/A
Maximum Tank Pressure (psi)
- 3000, N/A
Operating Temperature (°C)
- -34° to +121°, -26° to +204°, -45° to +132° C
Operating Temperature (°F)
- -30° to +250° F, -15° to +400° F, -50° to +270° F
Override
- None, Non-Detented, Detented, Push & Pull
Rated Flow (gpm)
- 4, 4.5, 0.9, 1.4, 4.5, 5.5, 2.7, 4.0, 1, 1.4, 4, 5, 8.5
Rated Flow (Lpm)
- 15.2, 17, 3.4, 5.3, 17.4, 21, 10, 15, 4, 5, 15, 19, 32
Rated Fluid Viscosity (CSt)
- Mineral-based or Synthetic with Lubricating Properties at Viscosities of 45-2000 SSU (6 to 420 cSt)
Response Time (msec)
- 50
Seal Material
- Nitrile, Fluorocarbon, D-Ring
Type / Configuration
- Closed Center, Floating Center
Valve Material
- All Parts Steel. All Operating Parts Hardened Steel
Variation of Opening Point (%)
- 25 % - 30 % of Input Signal
Wattage (W)
- 14,19, 14, 19, 28
Weight (kg)
- 0.15, 0.38
Weight (Lbs)
- 0.57
- Applications requiring precise controls
- Variable flow applications
- Actuator control
- Motor speed control
