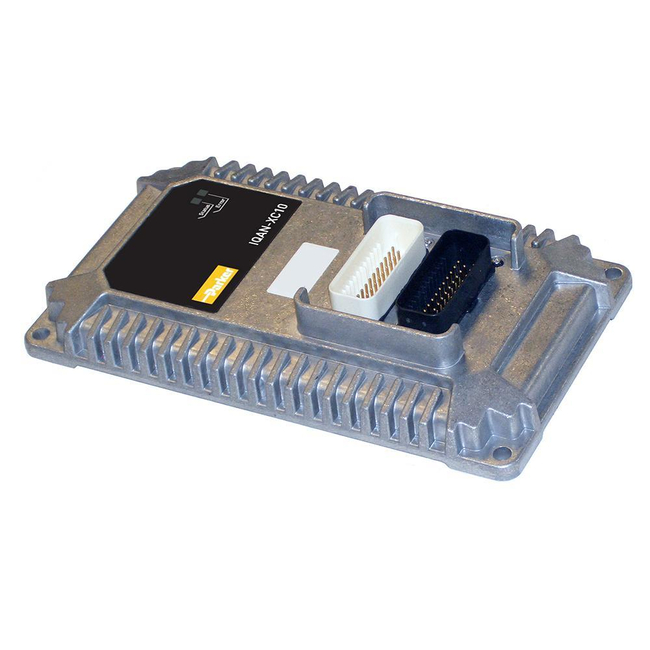

Expansion Controllers - IQAN-XC10
Brand: Parker HannifinParker’s IQAN-XC10 is a module in a collection of expansion (slave) controllers that can be added to an IQAN system.
The rugged XC10 has digital outputs designed for driving on-off solenoids in a hydraulic system.
The outputs can also be used for driving other types of loads, such as LEDs. Some of the outputs can be configured as non-regulated PWM outputs, for less demanding proportional hydraulic functions when temperature compensation is not needed.
The IQAN-XC10 has inputs capable of measuring analog, digital and frequency signals. The I/O may be flexibly configured to meet any system need. IQAN-XC10 communicates with IQAN master displays or controllers over a CAN bus.
Its function is defined in the IQAN master unit’s program with the easy-to-use IQAN programming tools.
Features- Monitors up to 30 inputs - analog, digital or frequency
- Pulse Width Modulation for proportional control of up to 4 valve sections
- Slave unit requires no programming
- Sealed for outdoor use
- CAN communication
Specifications
Brand
Approvals & Certifications
- 2004/108/EC
Controller Type
- Slave / Expansion Module
Electrical Connectors
- Amp Superseal
Housing Material
- Aluminum
IP Protection Rating
- 66
Markets
- Agriculture, Construction, Forestry, Material Handling, Specialty, Transportation
Number of Inputs
- 30
Number of Outputs
- 20
Output Current Rating (mA)
- 2500
Voltage (Vdc)
- 9-32
Working Temperature (°C) Maximum
- 70° C
Working Temperature (°C) Minimum
- -30° C
- Crane control
- Telehandler control
- Excavator control
- Auxiliary hydraulics control
