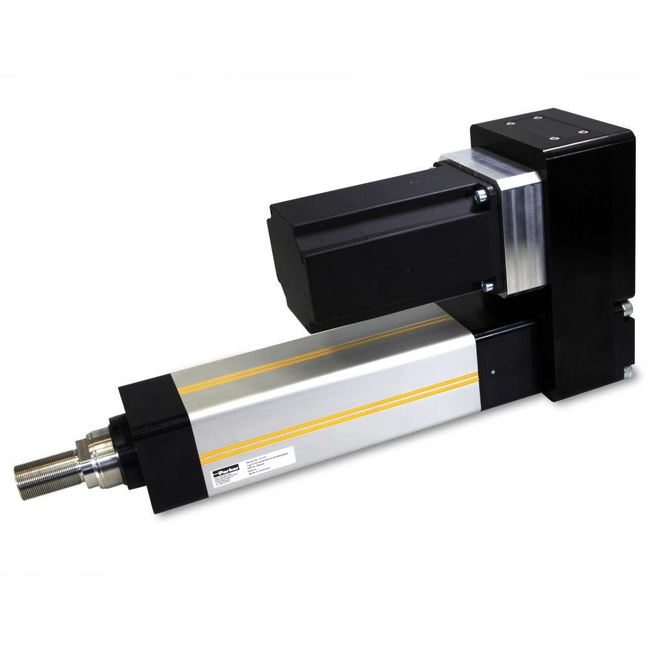

ETH125 High-Force Screw Drive Electric Cylinder/Actuator
Brand: Parker HannifinETH125 high force electric cylinders offer an ISO frame, thrusts to 25628lbs and an industry leading thrust/force density.
Employing an oversized ballscrew & thrust bearing the ETH is ideal for industrial applications and as a true hydraulic replacement.
Achieve greater control and increased reliability with Parker ETH125 High-Force High-Thrust Electric Cylinder/Linear Actuator offering thrust forces to 114000N and 25628lbs, strokes to 2.0m and an ISO125 compatible flange.
Parker ETH is the next generation of electric screw driven thrust cylinder/linear actuator product that is suitable to replace pneumatic and hydraulic cylinders in many applications while simultaneously increasing the reliability of the production process and decreasing overall cost and maintenance.
Utilizing a completely new integrated drive train and guidance design, the ETH has greatly improved overall thrust capacity within a smaller overall footprint, producing a cylinder with industry leading power density.
The ETH is designed to compete with similarly sized roller screw products and offers an energy efficient solution to hydraulic actuation. The new integrated design creates a more durable unit overall that has dramatically increased product life characteristics.
Features- Unrivalled power density — high forces and small frame size electric cylinder/actuator
- Long service life
- Reduced maintenance costs with easy access lubrication ports
- Reduced noise emission
- Pneumatic ISO125 flange conformity (norm DIN • ISO 15552) for easy conversion
- Integrated anti-rotation device
- Optimized for safe handling and simple cleaning
- Parker offers the complete solution - drive/controllers, motors and gearboxes to pair with the ETH
- Available with IP54 (standard) or IP65 (optional) based on application needs
- Optional ATEX certification for equipment group II, category 2 in explosive gas atmospheres
- High mechanical efficiency - up to 90%
- Toothed belt drive available for parallel motor mounting
- Several rod end options - including linear rod actuator guide module for additional side load support
- Accessories with integrated force sensors help to allot and even to control forces precisely
Specifications
Brand
Additional Protection Option
- None
Approvals & Certifications
- ATEX (Optional)
Corrosion Resistant Option
- Yes (Stainless Steel)
Drive Type
- Screw
IP Protection Rating
- IP54 IP65 (Optional)
Maximum Acceleration (Inch/S2)
- 393
Maximum Acceleration (m/S2)
- 10
Maximum Speed (inch/sec)
- 31.49
Maximum Speed (m/sec)
- 0.8
Maximum Stroke (inch)
- 78.7
Maximum Stroke (mm)
- 2000
Maximum Thrust (Lbs)
- 25628
Maximum Thrust (N)
- 114000
Operating Temperature (°C)
- -10° to +70° C
Operating Temperature (°F)
- +14° to +158° F
Position Repeatability (± Inch)
- 0.001 (Motor Inline) / 0.002 (Motor Parallel)
Position Repeatability (± mm)
- 0.03 (Motor Inline) / 0.05 (Motor Parallel)
Profile Width (mm)
- 150
Rod End Dimension
- ISO 125
Series
- ETH
- Factory Automation
- Pressing Applications
- Material Handling
- Valve and Flap Actuation
