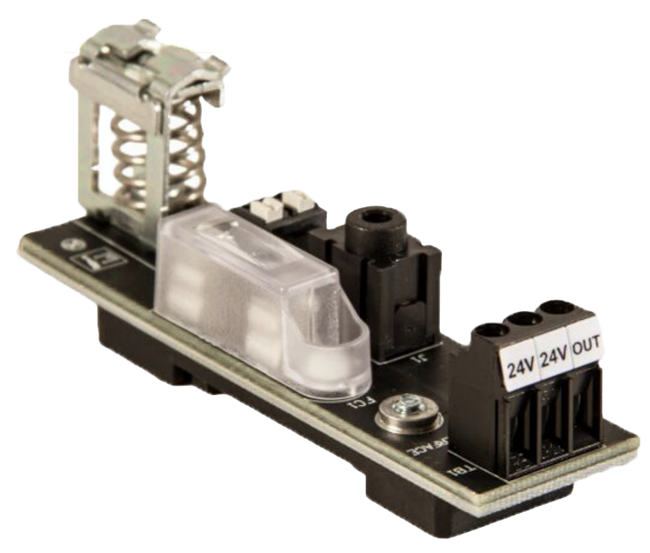

SIGNEXT-FM5-PLI-PE 420 mA Loop Interface Module.png

SIGNEXT-FM5/PLI/PE 4-20 mA Loop Interface Module

Brand: Emphatec
Add Product to My Catalog

The SIGNEXT-FM5/PLI/PE was designed to interface a loop-powered (2-Wire) 4-20 mA transmitter to a PLC/DCS Analog input.

It combines the features of multiple terminal blocks in a single, compact module. 24 Vdc power to the transmitter is provided via a 100 mA 5 x 20 mm fuse (provided with the module). If shield cable is used there is provision for grounding the shield directly to the DIN rail. A make before-break test jack is provided so an ammeter can be quickly and easily inserted into the loop while testing or calibrating the loop.
Features
  • Provides fused power to a loop-powered transmitter

  • Shield ground connection

  • Make-before-break test jack

    • Specifications

    Brand

    Approvals & Certifications

    • UL

    Current

    • 4-20 mA
    • Fuse: 100 mA

    Mounting

    • 35 mm DIN Rail
    • Socket Mounted Fuse

    Operating Temperature

    • -20° to 40° C (-4° to 104° F)

    Supply Voltage

    • Nominal: 24 Vdc

    Termination

    • 24 to 16 AWG
    • 26 to 12 AWG

    Torque

    • 0.5 to 0.6 Nm

    Documentation

    Data Sheets
