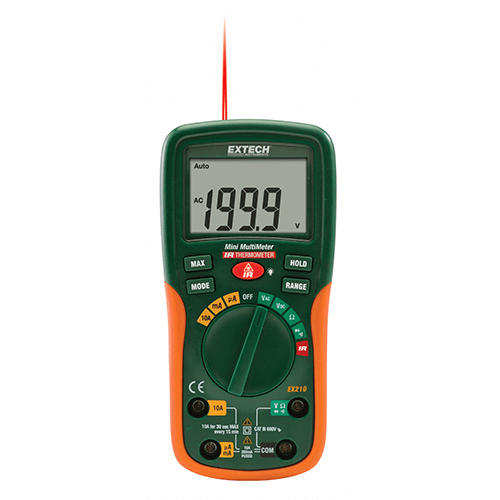

EX210 8 Function Mini Digital MultiMeter with IR Thermometer
Brand: ExtechAveraging, autoranging DMM with 2000 count large backlit dual LCD.
Features- Built-in IR Thermometer with laser pointer for locating hot spots (4:1 Distance to Target Ratio).
- AC/DC Voltage, AC/DC Current, Resistance, Temperature (IR), Continuity / Diode.
- 2000 count large backlit dual LCD with easy-to read digits.
- Low current capability measure down to 0.1µA.
- Max Hold, Data Hold and Auto power off.
- Input fuse protection.
- Complete with test leads and 9V battery.
Specifications
Brand
AC Current
- 0.1 µA to 10 A
AC Voltage
- 0.1 mV to 600 V
Basic Accuracy, Vdc
- ± 0.5 %
Continuity, Diode
- Yes
DC Current
- 0.1 µA to 10 A
DC Voltage
- 0.1 mV to 600 V
Dimensions
- 5.8 x 2.9 x 1.6” (147 x 76 x 42 mm)
Resistance
- 0.1 Ω to 20 MΩ
Temperature (IR)
- -5° to 446° F (-20° to 230° C)
Weight
- 9.17 oz. (260 g)
