Vanguard AC Outlet Module

Brand: Emphatec
Add Product to My Catalog

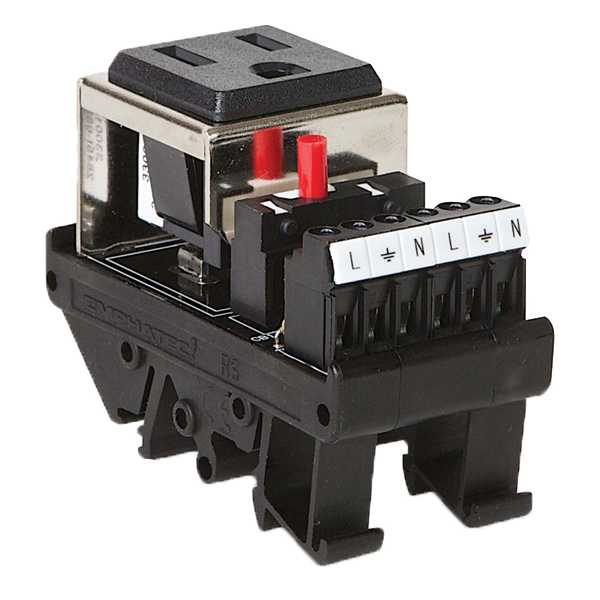

The VANGUARD™ AC Outlet Module provides a quick and easy way to install a maintenance outlet in a control panel. Clip it on a DIN rail and connect 120 Vac and you’re done. Included on the module is a 5 A supplemental circuit breaker with status LED.

As the breaker is a supplemental rated device, NEC/CEC requirements with regards to interrupting ratings and upstream protection by a branch breaker or fuse must be adhered to. The module requires just 35 mm of DIN rail. Also available is a GFCI version.
Features
  • Compact AC outlet module for installation in control cabinets

  • Built-in supplemental circuit breaker

  • Mounts on 32 mm and 35 mm DIN rails

    • Specifications

    Brand

    Approvals & Certifications

    • UL (C,US)

    Electrical Connectors

    • Screw Terminal

    Enclosure, Body Material

    • Polyamide

    Input

    • 120 Vac

    Manual Reset

    • Optional Manual Reset
    • Thermal

    Mounting

    • 32 mm & 35 mm DIN Rails

    Operating Temperature

    • -10° to 40° C (14° to 104° F)

    Output

    • Output (Load) Current: 5 A, Max.

    Termination

    • 26 to 12 AWG
    • Typical: Screw Clamp

    Documentation

    Data Sheets
