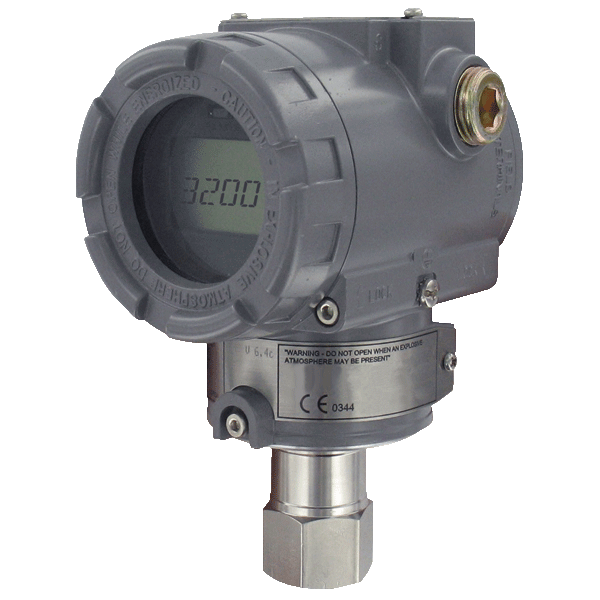

Series 3200G Explosion-Proof Pressure Transmitter
Brand: Dwyer Instruments, LLCThe Mercoid Series 3200G Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART Communication.
The Series 3200G is capable of being configured with the zero and span buttons, a field calibrator is not required for configuration.
The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss.
The Series 3200G is FM approved for use in hazardous (Classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.
Features- Completely Configurable Using Zero/Span Buttons (no calibrator required)
- Rangeability (100:1)
- High Accuracy (±0.075%)
- Automatic Sensor Temperature Compensation
- Fail Mode Process Function
1 - 4 of 4 Part Numbers
3200G-1-FM-1-1-LCD
3200G-2-FM-1-1-LCD
3200G-3-FM-1-1-LCD
3200G-4-FM-1-1-LCD
1 - 4 of 4 Part Numbers
Specifications
Brand
Accuracy
- ± 0.075 % of Full Scale (At 20° C)
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F) (without LCD)
Approvals & Certifications
- ATEX
- CE
- FM
Capillary Length
- 0 to 20 feet
Damping Adjustment
- 0 to 60 seconds
- 0.25 to 60 seconds
Diaphragm Material
- 316L Stainless Steel
- Hastelloy C-276
- PTFE
- Tantalum
Display
- 5-Digit LCD (Operational)
Electrical Connectors
- Two 1/2” NPT Female Conduit
Enclosure, Body Material
- 316 Stainless Steel Housing (Only Available with WP Approval)
Environmental Protection
- Explosion-proof
- IP66
- NEMA 4X
Fill Material
- Silicone Oil
Flange Material
- 316L Stainless Steel
Flange Size - 2” (DN 50)
- 2” (DN 50) - PN 10
- 2” (DN 50) - PN 16
- 2” (DN 50) - PN 25
- 2” (DN 50) - PN 40
- 2” DN 50 150#
- 2” DN 50 300#
- 2” DN 50 JIS 10K
- 2” DN 50 JIS 20K
Flange Size - 3” (DN 80)
- 3” (DN 80) - PN 10
- 3” (DN 80) - PN 16
- 3” (DN 80) - PN 25
- 3” (DN 80) - PN 40
- 3” DN 80 150#
- 3” DN 80 300#
- 3” DN 80 JIS 10K
- 3” DN 80 JIS 20K
Loop Resistance
- 0 to 1500 ohms (Operation)
- 250 to 500 ohms (HART Communication)
Maximum System Pressure
- psi: 11,600 (kPa: 79,979, bar: 799.79)
Media
- Gases
- Liquids
- Steam
- Vapors
Mounting
- Direct Mount 1 Flush Diaphragm Seal
NPT Connection
- 1/2” NPT Female
Output
- 4-20 mA / (HART Communication)
Power Requirement
- 11.9-45 Vdc
Pressure Range
- bar: -1 to 586
- kPa: -100 to 58,605
- psig: -14.5 to 8,500
Pressure Type
- Gauge
Process Temperature
- -40° to 120° C (-40° to 248° F)
Response Time
- 0.12 seconds
Stability
- ± 0.125 % of Full Scale Output/Year
Temperature Effect
- ± 0.125 % of Span/32° C (90° F)
Wetted Materials
- 316L Stainless Steel
- Water and wastewater
- Chemical and petrochemical
- Pulp and paper
- Oil and gas
- Food and beverage
