FC-100 Series Flow Controller

Brand: Tokyo Keiso Co, Ltd

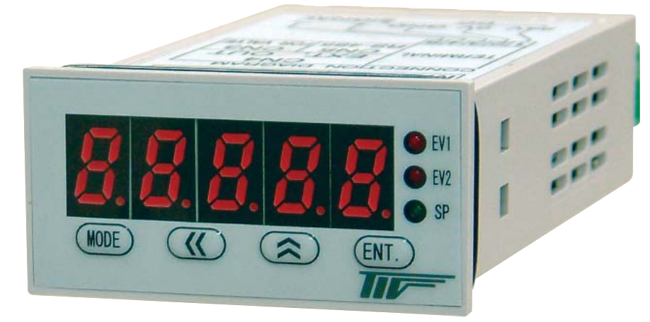

FC-100 series is a compact, integral flow control unit for water. This unit consists of two devices. One is FCV-200 which is for measurement and control with valve in wheel flowmeter, and other is FCA-100 which is a controller detecting and calculating the flow rate signal in order to control setting flow rate.

An axial flow type flowmeter has been adopted and the control valve has been built in, so that the direct connection with piping can be made. The controller has the functions to make calculation after receiving the signal from flowmeter and then to convert it to the control signal. Thus, the space saving and the improvement of noise-proof performance have been realized.
Features
  • Cost effective flow control system
  • Space saving
  • Full open/close type valve is adopted, and can be used as shut-off valve which has been indispensable
  • Drain out of line fluid by air purging possible
  • Lead-free solder has become reality
  • High reliability of electronics
  • EMC Compatible standard: EN61326-1

Specifications

Accuracy

  • ± 3 % of Full Scale

Ambient Temperature Range

  • 0° to 60° C (32° to 140° F)

Approvals & Certifications

  • CE
  • EMC EN 61326-1

BSP Connection

  • 1/4” BSPT Female
  • 3/8” BSPT Female

Enclosure, Body Material

  • Conversion Polyphenylene Ether

Environmental Protection

  • IP54
  • IP65

Humidity

  • 85 % Relative Humidity

Power Supply

  • 24 Vdc ± 10 %
