Trimod Besta High Pressure Range Power 80 Series Magnetic Level Indicators, Type 36800-A

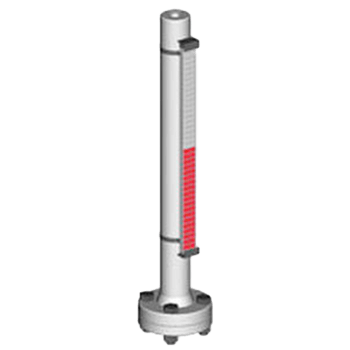

Type 36800-A High Pressure Range Power 80 Series Magnetic Level Indicator

Brand: Trimod Besta
Add Product to My Catalog

For pressures up to psi: 18,565 (kPa: 8,000, bar: 80) and maximum 400° C (752° F), viscosity maximum 600 cSt.

Specifications

Brand

BSP Connection

  • G 1” Female (ISO 7-1 / ISO 228-1)
  • G 1/2” Female (ISO 7-1/ISO 228-1)
  • G 3/4” Female (ISO 7-1 / ISO 228-1)
  • 1” BSPP Female (ISO 7-1 / ISO 228-1)
  • 1/2” BSPP Female (ISO 7-1 / ISO 228-1)
  • 3/4” BSPP Female (ISO 7-1 / ISO 228-1)

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 3/4” NPT Female

Welded Connection

  • 1” Butt Weld End
  • 1/2” Butt Weld End
  • 3/4” Butt Weld End

Operating Temperature

  • -10° to 400° C

Operating Pressure

  • Maximum 80 barg

Fluid Density

  • Minimum 0.6 g/cm³

Documentation

Data Sheets
