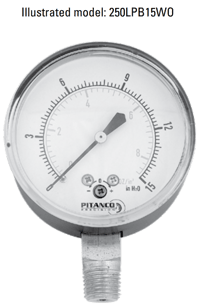

Model LPB/LPSS Low Pressure Gauge
Brand: Pitanco Precision
Ideal gauge for low pressure measurement of fluids and gases both corrosive and non-corrosive.
Used in refineries, paper mills, water treatment plants, etc.
Specifications
Brand
Case
- Steel, Painted Black for LPB
- 304 Stainless Steel for LPSS
Dial
- White Aluminum, H₂O or psi Graduations in Black, oz. of kPa in Blue
Cover & Lens
- Snap-In Polycarbonate for 2-1/2” (63 mm)
- 304 Stainless Steel Bayonet and Playcarbonate Lens for 4” (100 mm)
Pointer
- Aluminum, Painted Black
Connection
- 1/4 NPTM Bottom or Center Back, Brass for LPB
- 316 Stainless Steel for LPSS
Wetted Parts
- Brass for LPB
- Stainless Steel for LPSS
Capsule Diaphragm
- Phosphor Bronze for LPB
- 36 Stainless Steel for LPSS
Ambient Temperature
- -40° to 150° F / -40° to 65° C
Operating Pressure
- Maximum 75 % of Full Scale Value
Overpressure Limit
- 25 % Over Full Scale Value
Accuracy
- ASME B40.100 (B40.1), Grade B ± 2 %
