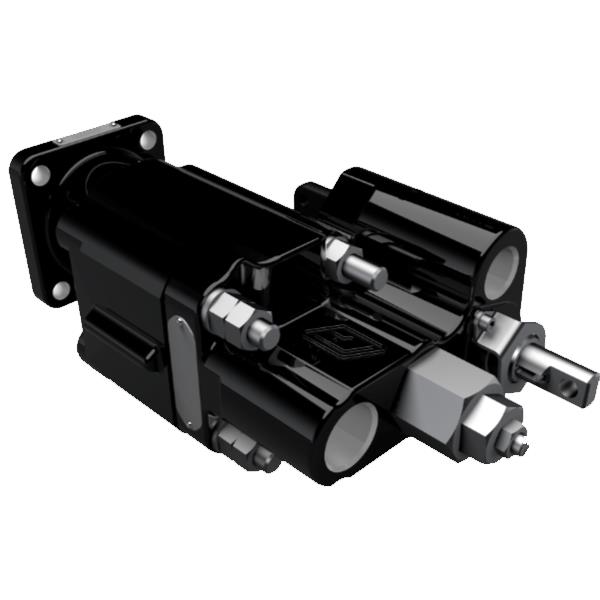

Cast Iron Pumps - C101/C102 Series
Brand: Parker HannifinParker’s C101/C102 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction, making it an ideal selection for the Vocational & Municipal Equipment market.
It is available as a standard pump with integrated valve for raising and lower dump beds, with integral relief valve.
Features- Three-piece cast iron construction for distribution flexibility
- Durable high-strength cast iron body for excellent power to weight ratio
- Cast Iron construction for durability
- Balanced Thrust Plates minimize friction and leakage
- Roller bearings for durability
Specifications
Brand
Body Material
- Cast Iron
Case Drain Option
- No
Charge Pump Option
- No
Circuit Type
- Open
Configuration
- Single
Control Method
- N/A
Energy Recovery Capable
- No
Filtration Option
- No
Fluid Type
- Standard Hydraulic Fluid / Phosphate Ester
Maximum Displacement (cm3/rev)
- 105
Maximum Displacement (inch3/rev)
- 6.4
Maximum Flow (gpm)
- N/A
Maximum Flow (Lpm)
- N/A
Maximum Fluid Temperature (°C)
- 80° C
Maximum Fluid Temperature (°F)
- 180° F
Maximum Noise Level (dBA)
- N/A
Maximum Operating Pressure (bar)
- 172
Maximum Operating Pressure (psi)
- 2500
Maximum Radial Shaft Load (kg)
- N/A
Maximum Radial Shaft Load (Lbs)
- N/A
Maximum Speed (rpm)
- 2400
Maximum Viscosity (SUS)
- 7500
Maximum Weight (kg)
- 32
Maximum Weight (Lbs)
- 70
Media
- N/A
Minimum Fluid Temperature (°C)
- -20° C
Minimum Fluid Temperature (°F)
- 0° F
Minimum Viscosity (SUS)
- 50
Mounting Option
- SAE, DIN
Port Connection
- NPT
Port Connection Type
- Tapered Thread
Porting Location
- Rear Ports
Pump Technology
- Gear
Pump Type
- Fixed
Rotation
- Clockwise / Counter Clockwise / Bi Rotational
Sensor Type
- N/A
Shaft Type
- SAE
Thru-Drive Capability
- No
- Dump Truck
- Dump Trailer
