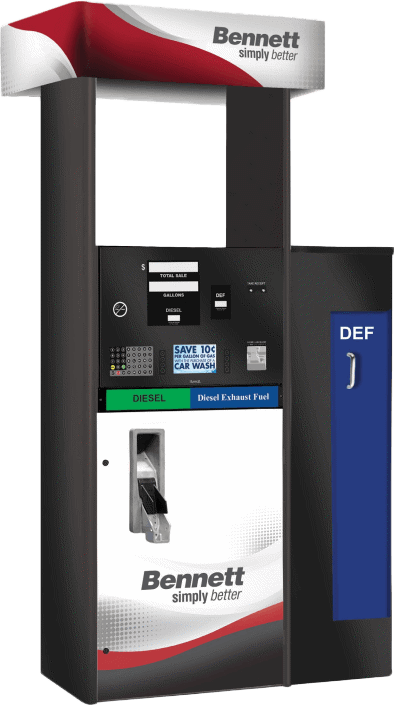

400 Series DEF Dispenser

Brand: Bennett Pump Company

DIESEL + DEF SATELLITE OPTIONS
Satellite options available for BOTH diesel and DEF fueling.

WORLD FAMOUS HYDRAULICS
  • Stainless steel rotary meter, with only two moving parts, provides maximum durability and reliability
  • Weights and Measures (NIST) approved DEF meter ensures precise fluid measurement
ELECTRONICS
Single Board surface mount electronics provide high reliability and low cost of ownership.

DURABLE
Sheet metal powder and electrostatic coatings provide automotive grade protection and maximum durability.

HEATER OPTION
Optional DEF heating system for use in cold weather applications.

1 - 9 of 9 Part Numbers
400BB
400BB
BigBlue DEF retrofit kit for pumps in service, high frames ONLY
410D
410D
1-sided unit, one DEF hose, low hose only
420D
420D
2-sided unit, one DEF hose per side, low hose only
420E
420E
1-sided unit, one DEF hose plus one diesel hose, high frame only
420H
420H
1-sided unit, one DEF Satellite hose plus one diesel Satellite hose, high frame only
430E
430E
2-sided unit, one sided DEF hose plus one diesel hose per side, high frame only
Master/Master Configuration
430F
430F
2-sided unit, one sided DEF hose plus one diesel hose per side, high frame only
Master/Satellite Configuration
440E
440E
2-sided unit, one DEF hose per side plus one diesel hose per side, high frame only
440G
440G
2-sided unit, one DEF hose per side plus one diesel hose per side, high frame only
Master/Satellite Configuration
1 - 9 of 9 Part Numbers

Specifications

Certifications & Approvals

  • UL
  • NIST

Products

  • Up to 2 Products (Diesel & DEF)

Hoses

  • Up to 2 Dispensing Points for DEF and/or Diesel Per Side

Unit Type

  • Straight Grade Only

Hydraulics

  • Remote Diesel/Remote DEF

Display

  • LCD 8-digit 1" for Sales and Volume
  • LCD 4-digit 1/2" Price Per Volume

Voltage

  • 120/240 VAC, 50/60 Hz

Flow Rate

  • 12 GPM

Inlet/Outlet Size

  • 1.5" dia NPT / 1" dia NPT

Protocol

  • Bennett Open Protocol / Generic / RS485

Operating Temperature

  • Electronics: -20° to +40° C

Humidity

  • 0-95% Condensing
