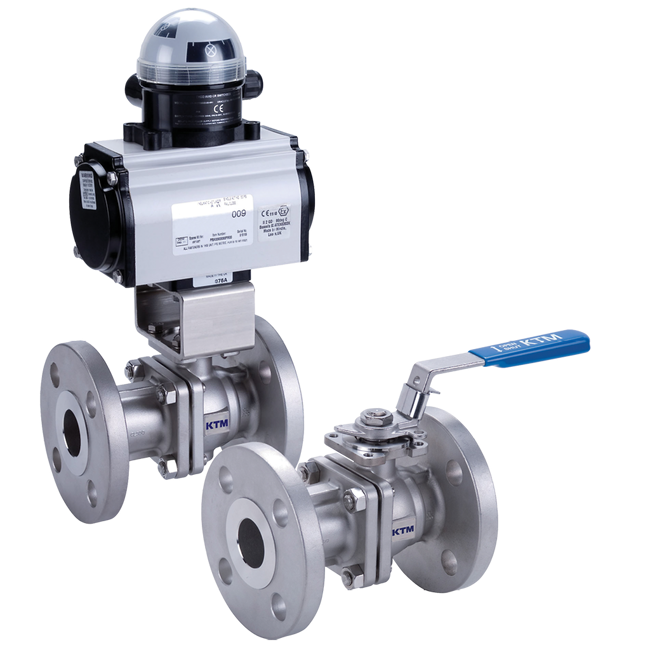

Series EF190FE Two-Piece Full Bore Ball Valves

Brand: KTM

High performance two-piece ball valve for demanding process applications where fire-safe and fugitive emission compliance is mandatory.
Features
  • The design includes two piece split body valve design with flanged connections.
  • Full compliance to ASME B16.35 and EN 12616-1.
  • Valve pressure rating: ASME Class 150/300, DIN PN 10/16/25/40.
  • Size range DN 15 to DN 300 (NPS ½ to NPS 12).
  • Fire Tested and Certified to API 607 and ISO 10497.
  • Double stem seal design complies with ISO 15848-1 Class BH C03 requirements (2500 cycles including thermal cycles).
  • Double Body Seal including PTFE primary seal and secondary graphite fire safe seal.
  • Carbon steel or stainless steel body materials.
  • Investment cast body DN 15 to DN 100 (NPS ½ to NPS 4).
  • Sand cast body DN 125 to DN 300 (NPS 5 to NPS 12).
  • Standard ball valve with respect to the PAS1085 specification Class D.
  • ISO 5211 / EN 15081 top mounting plate available with male centering for easy actuation.

Specifications

Brand

Approvals & Certifications

  • SIL Capable, NACE, PED, CE, Fire Safe, Fugitive Emission

Body Design

  • Long Pattern, Short Pattern, Side Entry

End Connection

  • Flanged

Material

  • Carbon Steel, 316 Stainless Steel

Media

  • Liquid Propane Gas, Liquids, LPG, Mineral Oil, Natural Gas

Pressure Class

  • PN, ASME

Process Connection Type

  • 300 RF, Class 150 RF, Class 300 RF, Flanged, PN 16, PN 25, 150 RF, PN 40

Seat / Seal Type

  • Soft Seal, Ball

Shutoff Class

  • API 598, Zero Leakage

Standards

  • API 608, ASME B16.34

Valve Size

  • NPS 3 / DN 80, NPS 2 / DN 50, NPS 12 / DN 300, NPS 1-1/2 / DN 40, NPS 10 / DN 250, NPS 1/2 / DN 15, NPS 1 / DN 25, NPS 3/4 / DN 20

Valve Size Standard

  • NPS, DN

Valve Type

  • Floating Ball Valve, Ball Valve

  • Burners
  • Burner Management Systems
  • Bulk Storage
  • Brewing
  • Boilers
  • Blower
  • Biofuels
  • Beverages
  • Batch
  • Balance of Plant
  • Asphalt Blending
