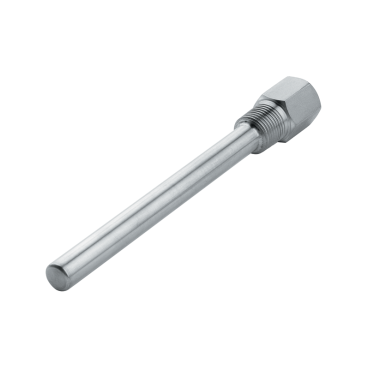

W10 & W20 Series Thermowell

Brand: Nuova Fima

Thermowells are used to to protect the measuring instrument from corrosion, high pressure or high fluid velocity and to allow the measuring instrument removal for recalibration or replacement without affecting the process system.

The w10-W20 series includes thermowells with threaded process connection.

These thermowells are suitable for low/medium work intensity.

Specifications

Brand

Insertion Bore

  • 0.39” (10 mm)
  • 0.47” (12 mm)

Material

  • AISI 316L Stainless Steel
  • AISI 316L Stainless Steel Seamless Tube
  • Insertion, AISI 316
  • Thread, AISI 316

Nominal Pressure

  • 360 psi @ 752° F (25 bar @ 400° C)

Process Fluid Temperature

  • -328° to +752° F (-200° to +400° C)

Total Length

  • 196” Max. (5000 mm)
