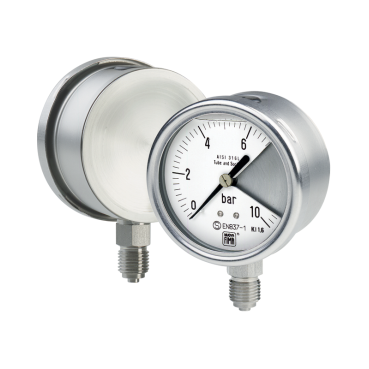

Nuova Fima Bourdon Tube Solid Front Pressure Gauge, MGS20 DN63

MGS20 DN63 Bourdon Tube Solid Front Pressure Gauge

Brand: Nuova Fima
Add Product to My Catalog

These Solid-Front instruments are built in accordance with safety specifications of EN 837-1 “S3” and ASME B40.1.

The safety construction consists of a solid separating wall in stainless steel, placed between the scale and the elastic element and a blow out back which is released from the case whenever an internal pressure, due to leaks, is created or the elastic element is broken.

A leak tight fit is ensured if the instrument is filled with a dampening fluid to prevent damage due to vibration.

These instruments are designed for use in chemical and petrochemical processing industries, and in conventional power plants.

They are built to resist the most severe operating conditions created by the ambient environment and the process medium.

Specifications

Brand

Accuracy Class

  • 1,6 as Per EN 837-1

Ambient Temperature Range

  • -13° to +149° F (-25° to +65° C)
  • Filled Model: +32° to +149° F (0° to +65° C) with Glycerine Filling
  • Filled Model: -40° to +149° F (-40° to +65° C) with Fluorinated Fluid Filling
  • Filled Model: -40° to +149° F (-40° to +65° C) with Silicon Oil Filling

Blow Out Disk

  • Plastic

Bourdon Tube

  • AISI 316L Stainless Steel

Case

  • Stainless Steel

Damping Liquid

  • Filled Model: Glycerine 98 %, Silicon Oil or Fluorinated Fluid

Design

  • EN 837-1

Dial

  • Plastic

IP Protection Rating

  • Fillable, Filled Model: IP67 as Per EN 60529 / IEC 529
  • IP55 as Per EN 60529 / IEC 529

Movement

  • Stainless Steel

Over Pressure Limit (15 Minutes Maximum)

  • 15 % of Full Scale Value for Pressure Ranges over 1500 psi (100 bar)
  • 25 % of Full Scale Value for Pressure Ranges ≤ 1500 psi (100 bar)

Pointer

  • Adjustable, Aluminum, Black
  • Fillable, Filled Model: Not Adjustable, Aluminum, Black

Process Fluid Temperature

  • Filled Model: Max.
  • Maximum

Ranges

  • From 0 to 15 to 0 to 15000 psi, from 0 to 1 to 0 to 1000 bar (or Other Equivalent Units)

Ring

  • Stainless Steel, Bayonet Lock

Safety Designation

  • S3 as Per EN 837-2

Socket Material

  • AISI 316L Stainless Steel

Thermal Drift

  • ± 0.4 % / 10 K of Range (Starting from 68° F / 20° C)

Window Material

  • Safety Glass

Working Pressure

  • 66 % of Full Scale Value for Pulsating Pressure
  • 75 % of Full Scale Value for Static Pressure
