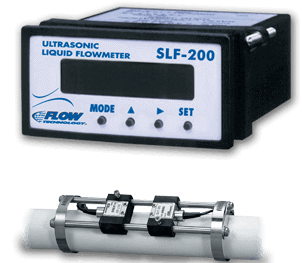

SLF-200 Ultrasonic Clamp-On Flow Meter
Brand: FTI Flow TechnologyThe Model SLF-200 Ultrasonic Liquid Flowmeter is an accurate, reliable and cost-effective clamp-on ultrasonic instrument capable of measuring flow through metal, plastic and various other pipe material without altering the piping. Ideal installation where it is preferable not to have an instrument exposed to the process fluid.
Features- No moving parts
- Low cost of ownership
- Easy installation with clamp-on sensor
- No cutting pipes
- No intrusion into the process line
- No pressure drop
- Increased energy savings
- Zero maintenance requirements
- No need for meter recalibration
- Wide rangeability with a single unit
- Fast response time
Specifications
Brand
Accuracy
- ± 1.5 % of Reading
- ± 1 % Full Scale
Repeatability
- ± 0.2 %
Appliicable Pipe
- Nominal Diameter 1” to 6”
Applicable Liquid
- Clean Liquids
Material of Construction
- PVC, Stainless Steel, Steel Cast Iron
- Glass Fiber Resin (Noril)
Temperature Range
- 0° to 50° C (32° to 122° F)
Analog Output
- Setting Within 0-33 ft./sec.
Environmental Protection
- IP50
Installation
- Panel Mount
Power Supply
- 12-30 Vdc
Consumption
- 2.5 W or Less
- Process Industry
- Semiconductor Market
- Sanitary Industry
