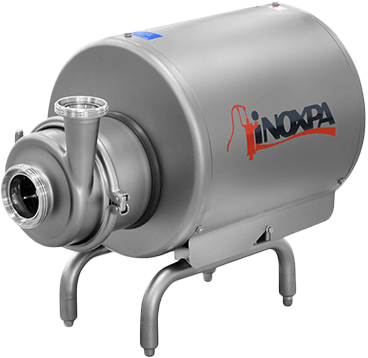

HYGINOX SE Centrifugal Pump
Brand: InoxpaHyginox SE is a close-coupled food-grade centrifugal pump with sanitary design, compact and efficient.
It is made of a cold-formed stainless steel casing, stainless steel open impeller (investment casting), mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression.
The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs.
Triphasic induction motor with B34 flange (B35 for motor frame 132 and above), in compliance with the IEC standards, 2 poles = 3000/3600 rpm, efficiency class according to EC regulation, IP 55 protection and F-class insulation.
Specifications
Brand
Parts in Contact with the Product
- Stainless Steel AISI 316L (1.4404)
Other Steel Parts
- Stainless Steel AISI 304 (1.4301)
Gaskets in Contact with the Product
- EPDM (according to FDA and EC 1935/2004)
Rotary Part
- Carbon (C)
Stationary Part
- Silicon carbide (SiC)
Gaskets
- EPDM
Surface Finish Internal
- Ra< 0,8 μm
Surface Finish External
- Matt
Connections
- DIN 11851
Nominal Pressure
- 10 bar
- 145 psi
Temperature Range
- -10° C to +120° C
- 14° F to 248° F
- +140° C (SIP, max- 30 min.)
- 284° F
Maximum Flow
- 145 m³/h
- 638 US GPM
Maximum Differential Head
- 90 m
- 295 ft
Maximum Speed
- 3500 rpm
