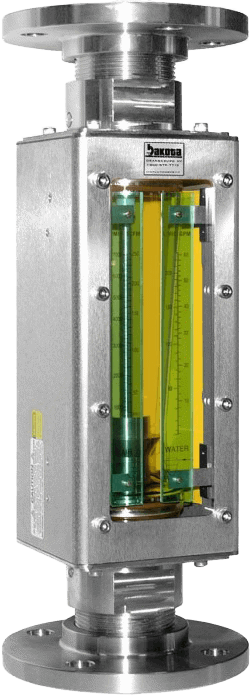

Industrial Stainless Steel Flanged Flow Meter

Brand: Dakota Instruments, Inc
Add Product to My Catalog

Heavy-duty flow meters are fully enclosed in a brushed stainless steel case. Ideal for industrial applications with flow rates of up to 116 GPM / 440 L/min and 250 SCFM / 7080 L/min.

Used for flow measurements of liquids (water) and gases (air.) Meters are graduated for direct reading of water and air. Wetted parts include borosilicate glass flow tubes, Viton® O-rings and 316 Stainless Steel fittings, guide rods and float stops.

These flow meters come with flanged end fittings for easy in-line installation.
Features
  • Heavy duty 316 stainless steel.
  • Thick polycarbonate safety shields.
  • Fluted or plain tapered tubes.
  • Direct reading metric and English system scales.
  • Unique design faciliates ease of maintenance cleaning processes.
  • Ideal for industrial applications with flow rates of up to 116 GPM / 440 L/min and 250 SCFM / 7080 L/min.
  • Meters are graduated for direct reading of water and air.
  • Flanged connections.

1 - 12 of 22 Part Numbers
6AM8101MJ
6AM8101MJ
Maximum Flow Range: Air - 1.2 SCFM (35 SLPM) | Water - 0.25 GPM (0.95 LPM), Tube Size: 3, End Fittings: 3/4" Flange
6AM8102MJ
6AM8102MJ
Maximum Flow Range: Air - 1.7 SCFM (50 SLPM) | Water - 0.36 GPM (1.3 LPM), Tube Size: 3, End Fittings: 3/4" Flange
6AM8103MJ
6AM8103MJ
Maximum Flow Range: Air - 3.3 SCFM (90 SLPM) | Water - 0.76 GPM (3 LPM), Tube Size: 3, End Fittings: 3/4" Flange
6AM8104MJ
6AM8104MJ
Maximum Flow Range: Air - 4.2 SCFM (120 SLPM) | Water - 1 GPM (3.7 LPM), Tube Size: 4, End Fittings: 3/4" Flange
6AM8105MJ
6AM8105MJ
Maximum Flow Range: Air - 6.5 SCFM (180 SLPM) | Water - 1.5 GPM (5.6 LPM), Tube Size: 4, End Fittings: 3/4" Flange
6AM8106MJ
6AM8106MJ
Maximum Flow Range: Air - 8.5 SCFM (250 SLPM) | Water - 2.2 GPM (8.2 LPM), Tube Size: 4, End Fittings: 3/4" Flange
6AM8107MK
6AM8107MK
Maximum Flow Range: Air - 16 SCFM (475 SLPM) | Water - 3.8 GPM (14 LPM), Tube Size: 5, End Fittings: 1 1/2" Flange
6AM8108MK
6AM8108MK
Maximum Flow Range: Air - 21.5 SCFM (650 SLPM) | Water - 5 GPM (18 LPM), Tube Size: 5, End Fittings: 1 1/2" Flange
6AM8109MK
6AM8109MK
Maximum Flow Range: Air - 25.5 SCFM (725 SLPM) | Water - 6 GPM (20 LPM), Tube Size: 6, End Fittings: 1 1/2" Flange
6AM8110MK
6AM8110MK
Maximum Flow Range: Air - 30 SCFM (900 SLPM) | Water - 7.4 GPM (27.5 LPM), Tube Size: 6, End Fittings: 1 1/2" Flange
6AM8111MK
6AM8111MK
Maximum Flow Range: Air - 40 SCFM (1200 SLPM) | Water - 9.6 GPM (35 LPM), Tube Size: 6, End Fittings: 1 1/2" Flange
6AM8112MK
6AM8112MK
Maximum Flow Range: Air - 47.5 SCFM (1400 SLPM) | Water - 11 GPM (40 LPM), Tube Size: 6, End Fittings: 1 1/2" Flange
1 - 12 of 22 Part Numbers

Specifications

Brand

Accuracy

  • ± 3 % of full scale

Minimum Flow Rate

  • Approximately 10 % of Max. flow rate.

Repeatability

  • ± 0.5 % of full scale

Maximum Pressure at 93° C (200° F)

  • 200 psig / 9.6 bars (tube sizes 3, 4, 5 and 6) 125 psig / 14.8 bars (tube sizes 8 and 9)

Flow Tubes

  • Heavy walled borosilicate glass

Front Shield

  • Thick, clear, polycarbonate and white acrylic

Fittings in Contact with Fluids

  • 316 Stainless Steel

O-rings

  • Standard O-Rings: Viton . (Optional O-Rings: PTFE/Kalrez , EPR)

Connections

  • 3/4”, 1 1/2” & 2 1/2” 150 ANSI Flanged
