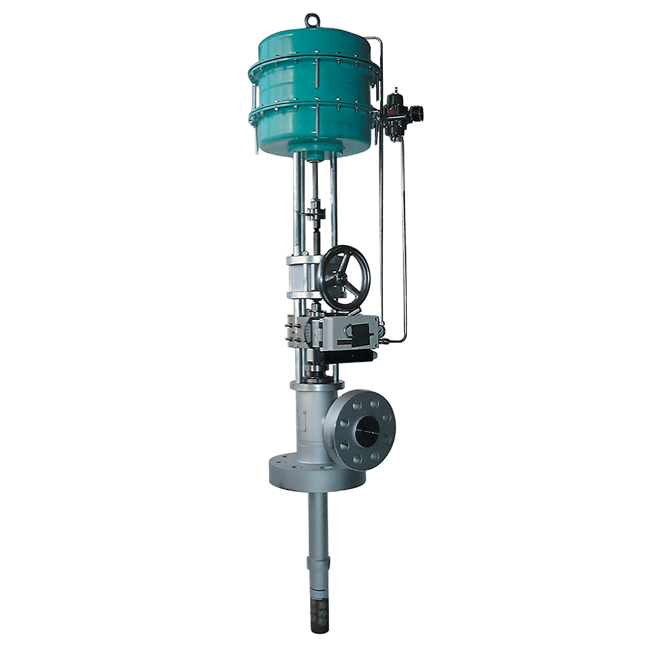

Yarway Narvik Probe Style Variable Nozzle Control Valve, Model 18/54 - 28/64

Model 18/54 - 28/64 Probe Style Variable Nozzle Control Valve

Brand: Yarway
Add Product to My Catalog

Yarway covers requirements for Desuperheaters, pneumatic actuators, strainers with a wide of models, sizes and materials to satisfy the specifications of the power, pulp and paper industries along with process gas applications.
Features
  • Forged construction.
  • High quality stuffing box, containing no asbestos.
  • Variable nozzle type.
  • Wide range of Cv (Kv) capacities available.
  • Special nozzle combinations available.
  • Semi balanced internals for economic actuator selection.
  • Yarway pneumatic actuator available.
  • Pressure class and connections: ASME B16.34 class 900 to 2500 EN 1092 PN 160 - 400.
  • Materials: ASTM SA 182 F22 or 1.7383, ASTM SA 182 F347H or 1.4550, ASTM SA 182 F91 or 1.4903.
    • Other materials upon request.

Specifications

Brand

Critical Service

  • Steam Condition

Flow Characteristics

  • Special Characterization, Modified Equal Percentage, Linear, Equal Percentage

Material

  • Alloy

Operating Temperature

  • High Temperature

Pressure Class

  • PN, ASME

Shutoff Class

  • Class V (FCI 70-2)

Valve Size

  • NPS 1 / DN 25, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 4 / DN 100, NPS 3 / DN 80

Valve Size Standard

  • DN, NPS

Valve Type

  • Angle Valve

Documentation

Data Sheets
