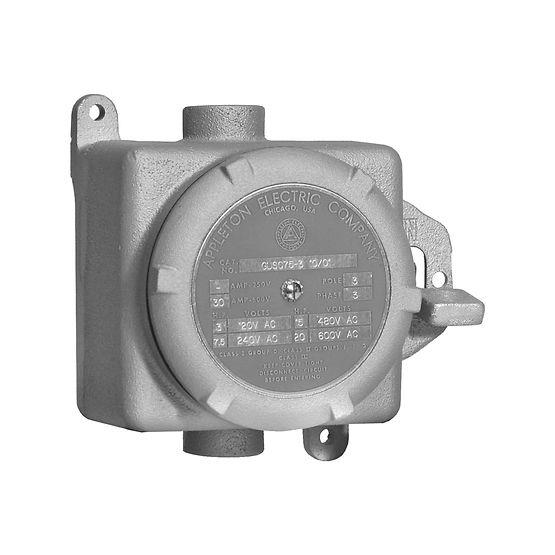

Appleton™ GUSC Heavy Duty Tumbler Switches

Brand: Appleton

Appleton™ explosionproof, dust-ignitionproof GUSC Series heavy duty tumbler switches are designed to confine arcing of switches, if any, to the enclosure interior during connect and disconnect operation of motors and other apparatus.

Designed for heavy-duty usage, these units are available for disconnects using up to 20 HP at 600 Vac.
Features
  • Explosionproof, Dust-Ignitionproof. Ideal for use in such classified locations as paint and varnish plants, grain elevators, coal or grain processing, gasoline bulk loading terminals and metal finishing areas
  • Compact design permits use in cramped quarters as on machinery
  • Threaded cover provides easy access for wiring and maintenance
  • Provided with mounting lugs
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
  • Threaded stainless steel shaft for operating handle
  • Lockable operating handle

Specifications

Brand

Standard Materials & Finishes

  • Cover: Copper-Free (4/10 of 1 % Max.) Aluminum
  • Body: Malleable Iron

Standard Finish

  • Body: Triple-Coat Finish (1) Zinc Electroplate, (2) Chromate, & (3) Epoxy Powder Coat
  • Cover: Natural Finish

NEC/CEC Certifications & Compliances

  • UL Standard: UL 894

Documentation
