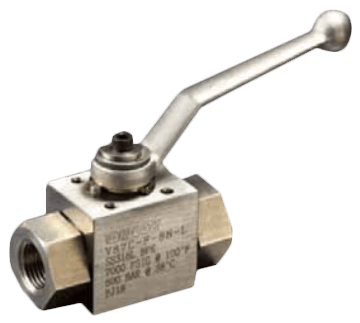

V87 Series Ball Valve
Brand: DK-LOK
Features
- Pressure rating up to psi: 7,250 (kPa: 50,000, bar: 500)
- Positive stop with robust stop pin
- Various end ports including DIN Standard port
Specifications
Brand
Approvals & Certifications
- ABS
- ASME N, NPT, NS
- BV
- CE
- CRN
- DNV GL
- KHNP
- KR
- LLOYD
- NK
- TÜV NORD
Direct Mount
- No
Enclosure, Body Material
- 316 Stainless Steel - A276
- Carbon Steel (S45C)
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 1/4” NPT Female
- 1/8” NPT Female
- 3/4” NPT Female
- 3/8” NPT Female
O-Ring Material
- EPDM
- FFKM
- FKM
- NBR
PT/PF/PS (JIS) Connection
- 1” PF Female
- 1/2” PF Female
- 1/4” PF Female
- 1/8” PF Female
- 3/4” PF Female
- 3/8” PF Female
Seat / Seal Material
- Seat: PEEK
- Seat: POM
- Seat: PTFE
Valve Type
- Manual
