AST Media Isolated mV Output Pressure Sensor, 89U

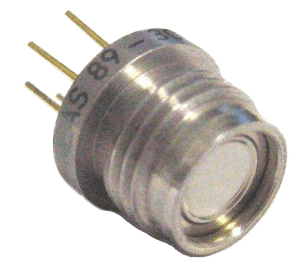

89U Media Isolated mV Output Pressure Sensor

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The 89 uncompensated is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing.

The 89 uncompensated features 5/16"-32 UNEF threads and can be welded in place. It can also be packaged in a variety of threaded fittings such as 1/4" and 1/8" NPT, 1/4" BSP as well as custom process fittings.

The 89 uncompensated is designed for high pressure OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element.
Features
  • Weldable and Threaded Process Fittings
  • -40ºC to 125ºC Operating Temperature Range
  • ±0.25% Pressure Non Linearity
  • Solid State Reliability

View_Details

Specifications

Brand

Accuracy

  • ± 0.25 % of Span - Pressure Non-Linearity

Ambient Temperature Range

  • 25° C (77° F)

Applications

  • Hydraulic Controls
  • Pressure Calibrators
  • Process Control
  • Refrigeration/Compressors

Approvals & Certifications

  • RoHS

BSP Connection

  • 1/4"-19 BSP

Hysteresis

  • ± 0.05 % of Span - Pressure & Thermal Hysteresis: Span & Offset

Insulation Resistance

  • 50 MΩ at 50 Vdc

Media

  • Liquids & Gases

Mounting

  • O-Ring

NPT Connection

  • 1/4" NPT
  • 1/8"-27 NPT

Operating Temperature - Sensor

  • -40° to 125° C (-40° to 257° F)

Output Load

  • 5 MΩ

Power Requirement

  • 0.5-2 mA

Pressure Range

  • psi: 0 to 10,000 (kPa: 0 to 69,000, bar: 0 to 690)

Pressure Type

  • Absolute

Repeatability

  • ± 0.02 % of Span

Resistance

  • 3,900 to 5,100 ohms

Sensitivity

  • 15-28 mV/V Full Scale

Sensor, Probe Material

  • 316L Stainless Steel

Sensor, Probe Type

  • Piezoresistive Silicon

Stability

  • ± 0.1 % of Span/Year - Long Term Stability: Span & Offset

Storage Temperature

  • -50° to 125° C (-58° to 257° F)

Supply Voltage

  • 9.5 V

Torque

  • 154 to 180 in/lb

UNF/UNC Connection

  • 5/16"-32 UNEF
