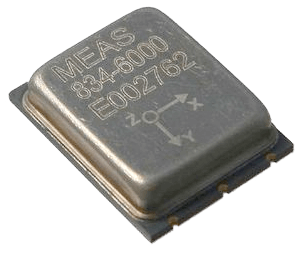

834M1 Embedded Accelerometer
Brand: American Sensor Technologies IncThe Model 834M1 is a low cost, board mountable triaxial accelerometer designed for high amplitude embedded shock applications.
The accelerometer features a maximum current consumption of 22 micro-amps and incorporates full power and signal conditioning. The model 834M1 is available in ±2,000 to ±6,000g ranges and provides a flat frequency response up to greater than 6 kHz. The standard model 834 offers the same envelope with a lower maximum current consumption of 4 micro-amps.
Features- ±2,000 to ±6,000g Dynamic Range
- Low Cost Triaxial
- Hermetically Sealed
- Piezo-ceramic Crystals
- -40° to 125°C (-40° to 257°F) Operating Range
- Single Axis Configurations Available
Specifications
Accuracy
- ± 2 % of FSO - Non-Linearity
Applications
- Asset Monitoring
- Embedded Applications
- Impact Testing
- Instrumentation
- System Wake-Up Switch
Approvals & Certifications
- CE
- RoHS
Bandwidth
- 6 kHz
Consumption
- < 22 µA
Current
- < 22 µA - Total Supply
Enclosure, Body Material
- Ceramic Base
- Nickel Silver Cover
Excitation Voltage
- 3.3-5.5 Vdc
Frequency
- > 30,000 Hz - Natural Frequency
- 2 to 6,000 Hz at ± 2 dB
Insulation Resistance
- > 100 MΩ at 100 Vdc
Load Impedance
- < 100 ohms - Output Impedance
Mounting
- Surface Mounting - Ground Isolation
NACE & NIST
- NIST - Traceable Amplitude Calibration
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output Noise
- 0.2 to 4 mg/√Hz at 10 Hz to 1 kHz - Spectral Noise
- 30 to 40 µV at 0.1 Hz to 10 kHz - Broadband Noise
Sensitivity
- < 8 % - Transverse Sensitivity
- 0.20 to 0.62 mV/g at ± 30 %
Sensor, Probe Material
- Ceramic (Shear Mode) - Sensing Element
Shock
- 10,000 G
Storage Temperature
- -40° to 125° C (-40° to 257° F)
- Asset Monitoring
- Impact Testing
- System Wake-Up Switch
- Embedded Applications
- Instrumentation
