AST Force Load Cell, FN3050

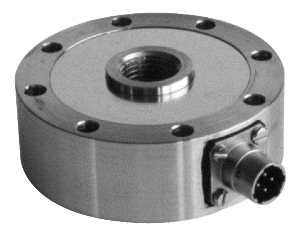

FN3050 Force Load Cell

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The rugged FN3050 load cell is highly suited for process industry and test bench applications.

Dimensions are identical in standard ranges from 0 to 100 N to 0 to 20,000 N so during testing the sensor can be interchanged for another of a different range without mechanical modifications.

The sensor design minimizes transverse effects. For high-level output a model with integrated amplifier is available as are numerous other options.
Features
  • Same housing for all ranges
  • Mechanical stops in option
  • Optional
    • Tension Pull Plate
    • Load Button
  • Integrated amplifier optional

View_Details

Specifications

Brand

Accuracy

  • ± 0.3 % of Full Scale - Combined Linearity & Hysteresis

Applications

  • Dedicated to Low & Medium Quantity Volume
  • Laboratory & Research
  • Process Control Equipment
  • Regulation Load Cell
  • Robotics & Effectors

Approvals & Certifications

  • CE
  • EN 50081-1
  • EN 50082-1
  • EN 61010-1

Compensated Temperature

  • 0° to 60° C (32° to 140° F)

Consumption

  • < 50 mA
  • 50 mA

Cover Material

  • Aluminum

Enclosure, Body Material

  • Aluminum Alloy
  • Stainless Steel

Hysteresis

  • 0.1 % of Full Scale

Input Impedance

  • 350 to 700 ohms

Insulation Resistance

  • ≥ 100 megaohms

Linearization

  • 0.1 % of Full Scale

Load Impedance

  • < 100 ohms - Output Impedance
  • 1,000 ohms - Output Impedance
  • 250 to 700 ohms - Output Impedance

Operating Temperature

  • -20° to 80° C (-4° to 176° F)

Sensitivity

  • < 1 % of Reading / 50° C (100° F) - Thermal Sensitivity Shift
  • ± 1.5 mV/V of Full Scale Output
  • ± 2 V, ± 0.2 V of Full Scale Output
  • ± 5 V ± 0.2 V of Full Scale Output

Supply Voltage

  • ± 15 Vdc (± 12 to ± 18 Vdc)
  • 10 Vdc
  • 10-30 Vdc

Zero Offset

  • < ± 5 % of Full Scale
  • 0 V, ± 0.2 V
  • 2.5 V, ± 0.2 V

  • Process control equipment
  • Regulation load cell
  • Robotics and effectors
  • Laboratory and Research
  • Dedicated to low and medium quantity volume

Documentation

Data Sheets
