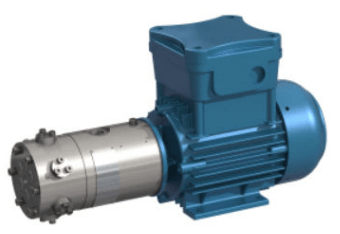

SMLP Oil Pump
Brand: Bifold - by RotorkThe SMLP hydraulic axial piston pump for hydraulic oil application has been specially designed for direct mounting to DC or AC motors in the 71 to 90 frame range.
The new compact design avoids the need for a bell housing and coupling unit with the pump mounted directly to the motor.
The Type SMLP hydraulic axial piston pump is of a rotating swash plate design and can deliver pressures up to 210 bar.
Features- Compact - pump mounted directly to motor
- Rotating swash plate design
- Pressures up to psi: 3,046 (kPa: 21,000, bar: 210)
- Flows up to 6.48 l/m (1.71 USg/m)
- Horizontal or vertical mounting
Specifications
Brand
Approvals & Certifications
- IEC 70, 80, 90 Frame B34 Face Motors, 80 (Frame B35 & V1 Flange Motors)
BSP Inlet
- 1/2” BSP Female
- 3/4” BSP Female
BSP Outlet
- 1/2” BSP Female
- 1/4” BSP Female
Enclosure, Body Material
- Aluminum
- Carbon Steel
- Stainless Steel
NPT Inlet
- 1/2” NPT Female
NPT Outlet
- 1/4” NPT Female
